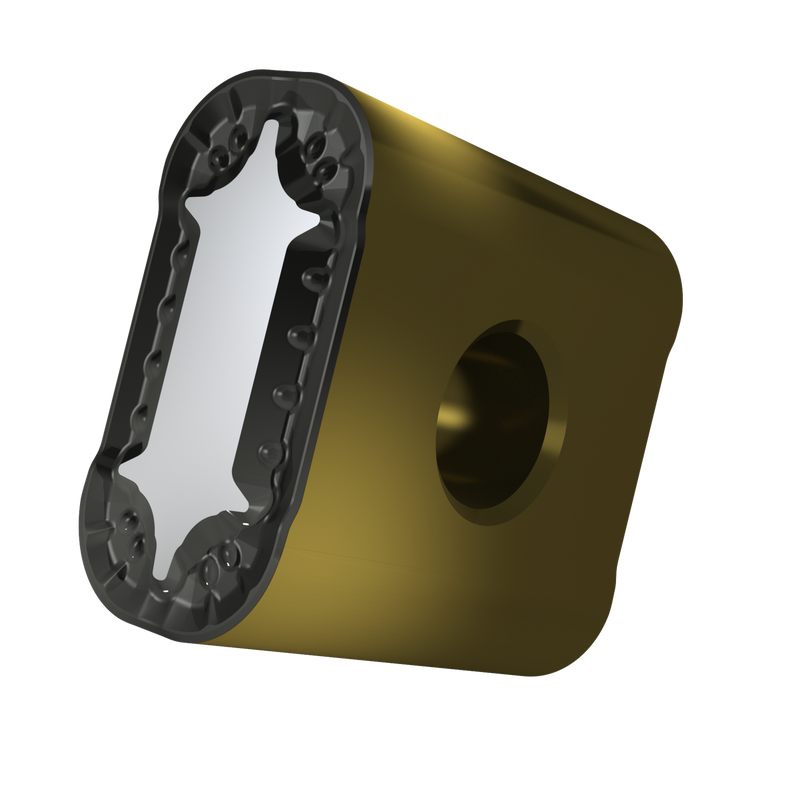

LNMX 191940SN-TF:T9415
LNMX 191940SN-TF:T9415

LNMX 191940SN-TF:T9415

UGC DOR8183846
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.43 CAD - $52.43 CAD
$52.43 CAD
$52.43 CAD - $52.43 CAD
$52.43 CAD

Vendu en lots de : 10

Plaquette de délignage négative de conception spéciale, rectangulaire de 19 mm de long, de 19,05 mm d'épaisseur pour une profondeur de coupe de 4 mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux TF, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour les aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNMX 191940SN-TF:T9415
GradeT9415
Chipbreaker (CBMD)TF
Product Number8183846
Product FamilyLN.X 19, LN.X 30
Insert Geometry
Insert DesignLN.X 19, LN.X 30
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.75"
Insert Thickness — mm (S)19.05 mm
Corner Radius — in (RE)0.157"
Corner Radius — mm (RE)4 mm
Tool Information
Reference Numbers
EDP Number8183846
EAN3603603953604
File Type Download
LNMX 191940SN-TF:T9415 — Line Drawing PDF Download
