RCMT 1606MOS-37:T9415
RCMT 1606MOS-37:T9415

RCMT 1606MOS-37:T9415

UGC DOR8183847
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.97 CAD - $27.97 CAD
$27.97 CAD
$27.97 CAD - $27.97 CAD
$27.97 CAD

Vendu en lots de : 10

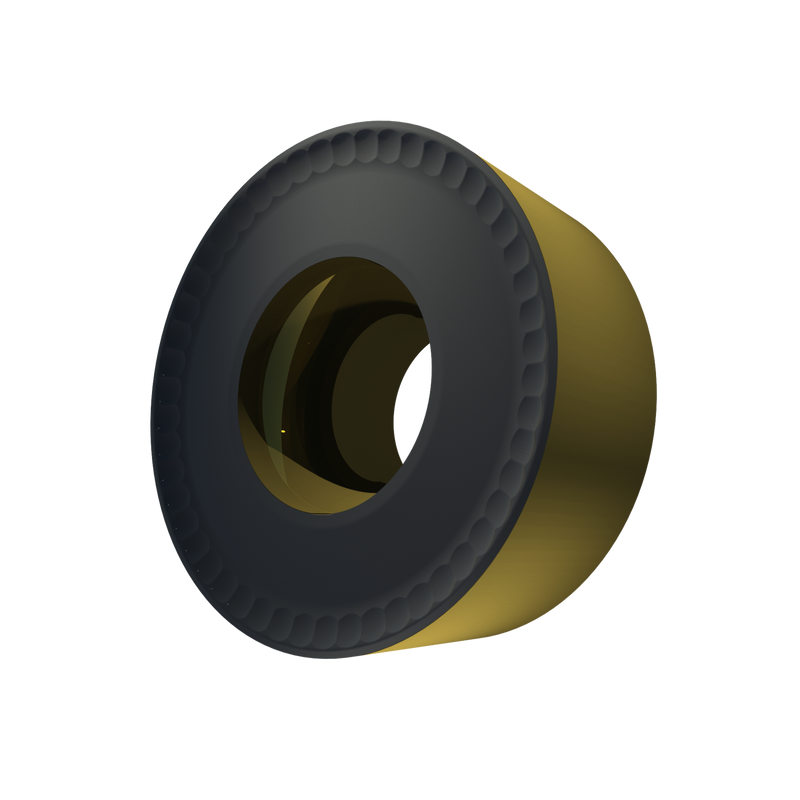

Plaquette de tournage positive simple face, ronde avec dépouille de 7°, diamètre de 16 mm, épaisseur de 6,35 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux 37 avec arêtes de coupe arrondies avec facette, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage moyen à fin des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 1606MOS-37:T9415
GradeT9415
Chipbreaker (CBMD)37
Product Number8183847
Product FamilyRCMT
Insert Geometry
Insert DesignRCMT
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Tool Information
Reference Numbers
EDP Number8183847
EAN3603603953611
File Type Download

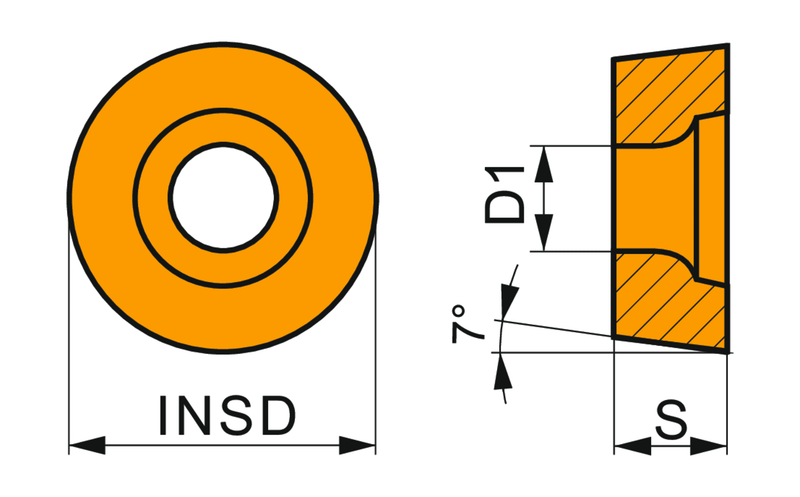

RCMT 1606MOS-37:T9415 — Line Drawing PDF Download
