LNGF 361220-PM-S01:T9415
LNGF 361220-PM-S01:T9415

LNGF 361220-PM-S01:T9415

UGC DOR8183902
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$80.71 CAD - $80.71 CAD
$80.71 CAD
$80.71 CAD - $80.71 CAD
$80.71 CAD

Vendu en lots de : 5

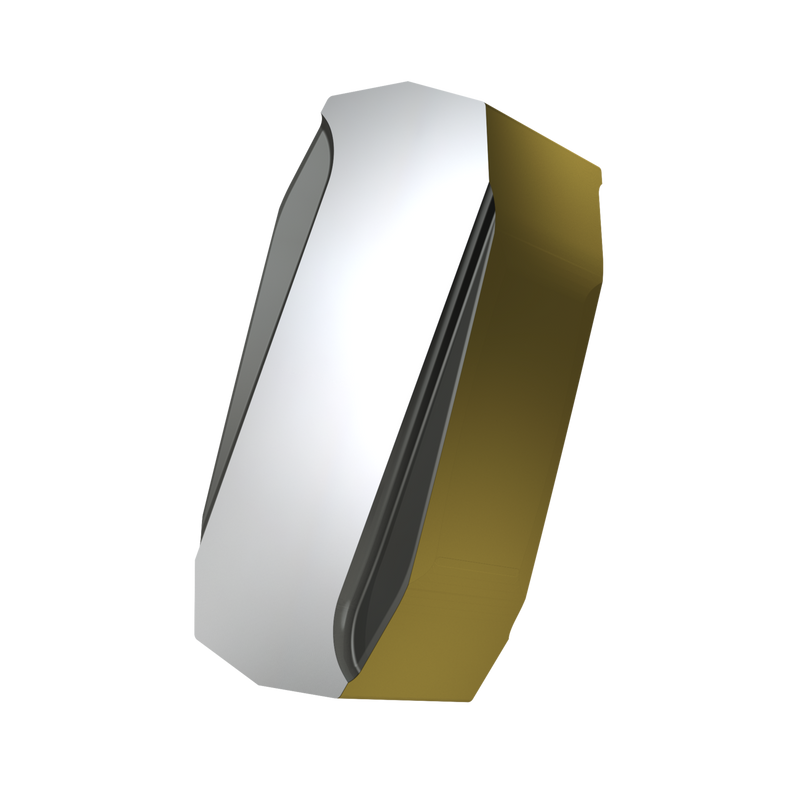

Plaquette de délignage négative double face, rectangulaire, de 36,5 mm de long, 12 mm d'épaisseur pour 2 mm de profondeur de coupe, précision de positionnement selon la classe de tolérance ISO G, brise-copeaux PM avec préparation d'arête de coupe S01, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P05 - P30, pour les aciers à haute résistance

For more information about this product, click here

Identification
Ordering Code (ANSI)LNGF 361220-PM-S01:T9415
Product Name (ISO)GNL 361220-PM-S01:T9415
GradeT9415
Chipbreaker (CBMD)MP
Product Number8183902
Product FamilyLNGF 36
Insert Geometry
Insert DesignLNGF 36
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.472"
Insert Thickness — mm (S)12.0 mm
Tool Information
Reference Numbers
EDP Number8183902
EAN3603603953666
File Type Download

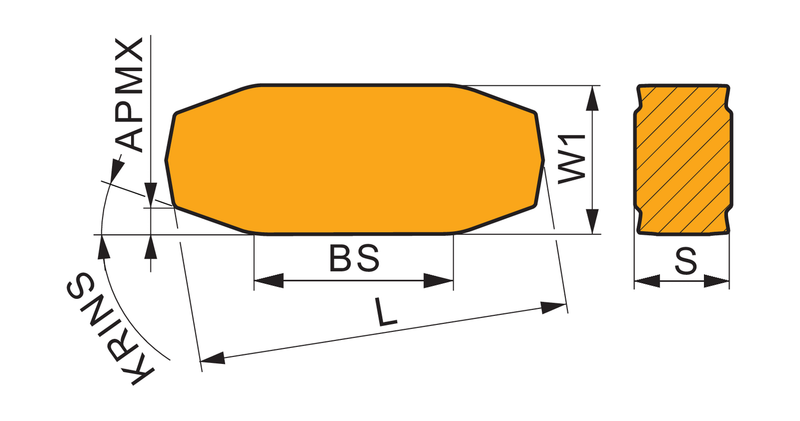

LNGF 361220-PM-S01:T9415 — Line Drawing PDF Download
