40A04R-S90LN12X-C
40A04R-S90LN12X-C
40A04R-S90LN12X-C

40A04R-S90LN12X-C

UGC DOR8184465
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$616.00 CAD - $616.00 CAD
$616.00 CAD
$616.00 CAD - $616.00 CAD
$616.00 CAD

Vendu en lots de : 1

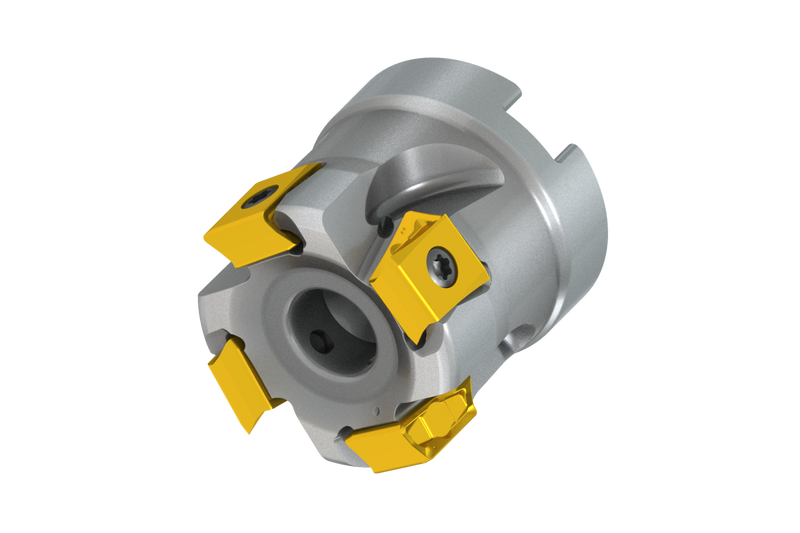

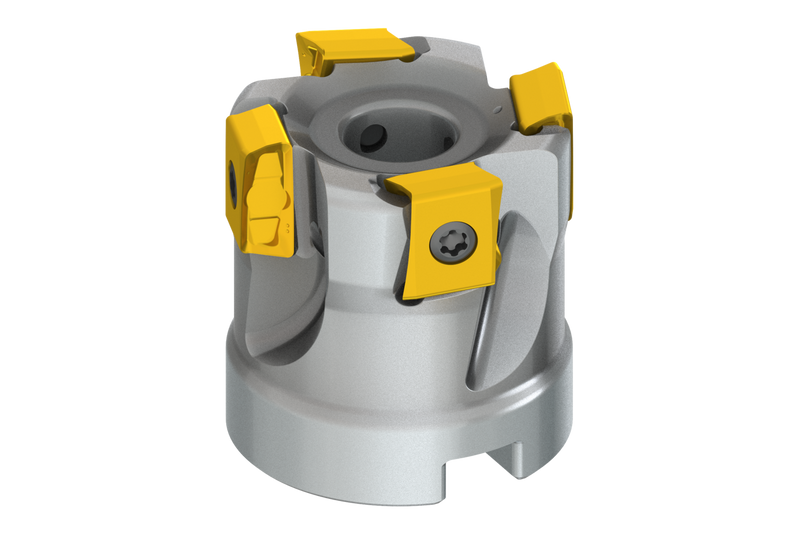

Fraise à épaule à géométrie double négative qui utilise 4 plaquettes double-face LNEX 1210.., diamètre de coupe 40 mm avec un angle d'approche de 90° et un alésage de connexion de 16 mm selon DIN 8030-A, 40 mm fonctionnel et, par arrosage interne et pas différentiel pour le surfaçage, le fraisage d'épaulement peu profond, le fraisage d'épaulement profond, le fraisage en plongée et le fraisage de rainures peu profondes avec une profondeur de coupe maximale de 10 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)40A04R-S90LN12X-C
Product Number8184465
Product FamilySLN12X
Insert Geometry
Depth of Cut Max — mm (APMX)10.0 mm
Dimensions
Cutting Diameter — mm (DC)40.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSLN12X
ShankFraise à surfacer-dresser DIN 8030 A
Through Coolant Yes
Reference Numbers
EDP Number8184465
EAN3603603953970
File Type Download
40A04R-S90LN12X-C — 3D Model STP Download
40A04R-S90LN12X-C — 2D Model DXF Download
40A04R-S90LN12X-C — Line Drawing PDF Download
