50A06R-S90LN12X-C
50A06R-S90LN12X-C
50A06R-S90LN12X-C

50A06R-S90LN12X-C

UGC DOR8184468
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$803.00 CAD - $803.00 CAD
$803.00 CAD
$803.00 CAD - $803.00 CAD
$803.00 CAD

Vendu en lots de : 1

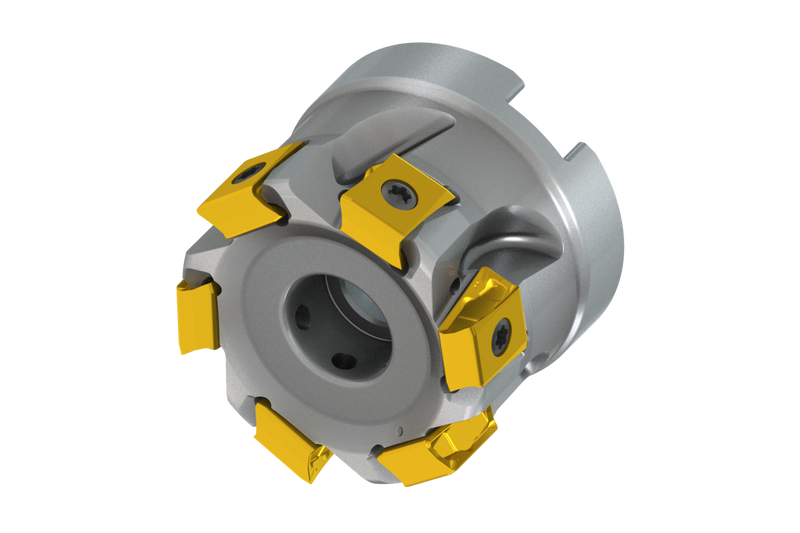

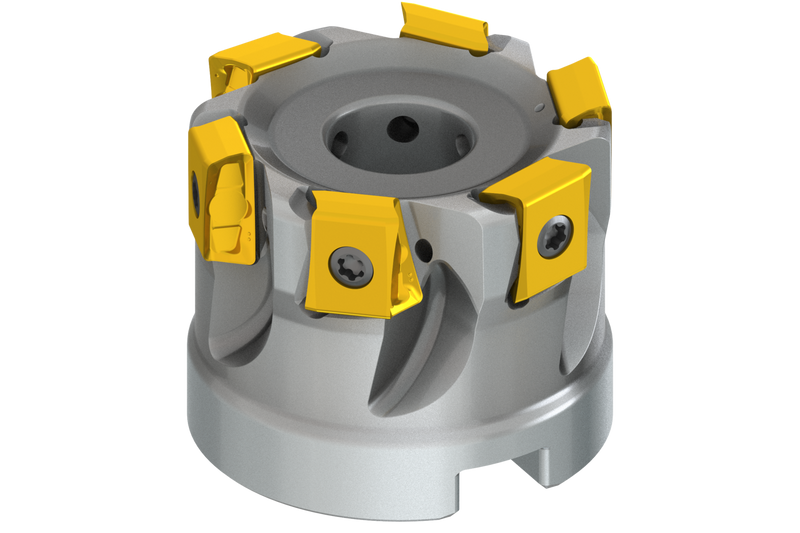

Fraise à épaule à géométrie double négative qui utilise 6 plaquettes doubles LNEX 1210.., diamètre de coupe 50 mm avec un angle d'attaque de 90° et un alésage de connexion de 22 mm selon DIN 8030-A, 40 mm fonctionnel et arrosage central pour le surfaçage, le fraisage d'épaulement peu profond, le fraisage d'épaulement profond, le fraisage en plongée et le fraisage de rainures peu profondes avec une profondeur de coupe maximale de 10 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)50A06R-S90LN12X-C
Product Number8184468
Product FamilySLN12X
Insert Geometry
Depth of Cut Max — mm (APMX)10.0 mm
Dimensions
Cutting Diameter — mm (DC)50.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSLN12X
ShankFraise à surfacer-dresser DIN 8030 A
Through Coolant Yes
Reference Numbers
EDP Number8184468
EAN3603603954007
File Type Download
50A06R-S90LN12X-C — 3D Model STP Download
50A06R-S90LN12X-C — 2D Model DXF Download
50A06R-S90LN12X-C — Line Drawing PDF Download
