52A05R-S90LN12X-C
52A05R-S90LN12X-C
52A05R-S90LN12X-C

52A05R-S90LN12X-C

UGC DOR8184474
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$772.00 CAD - $772.00 CAD
$772.00 CAD
$772.00 CAD - $772.00 CAD
$772.00 CAD

Vendu en lots de : 1

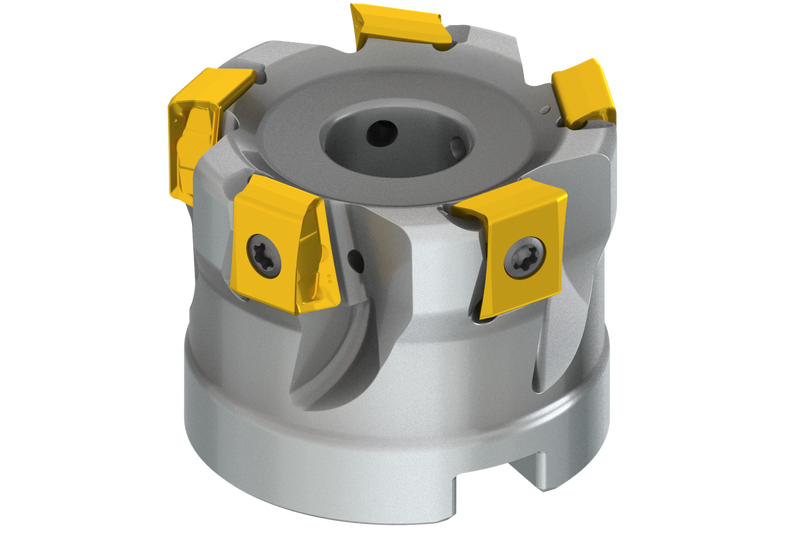

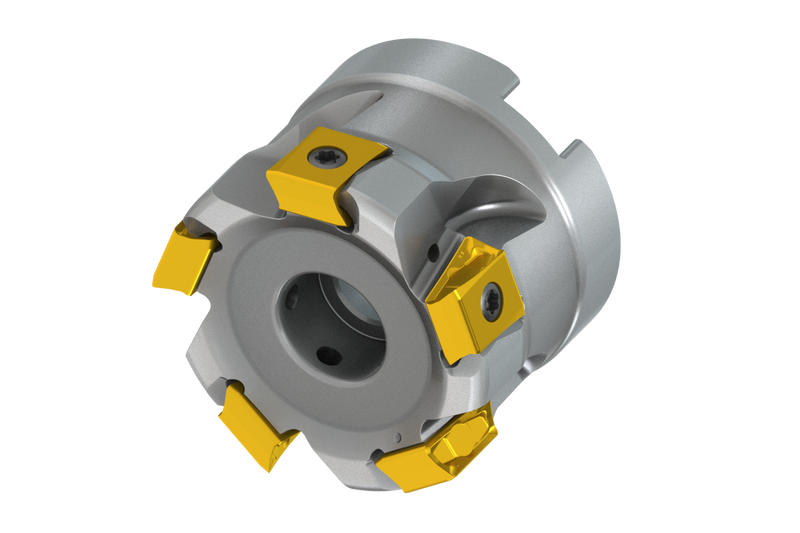

Fraise à épaule à géométrie double négative utilisant 5 plaquettes double face LNEX 1210.., diamètre de coupe 52mm avec un angle d'attaque de 90° et un alésage de connexion de 22mm selon DIN 8030-A, longueur fonctionnelle de 40mm et arrosage interne pour le surfaçage, le fraisage d'épaulement peu profond, le fraisage d'épaulement profond, le fraisage en plongée et le fraisage de rainures peu profondes avec une profondeur de coupe maximale de 10mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)52A05R-S90LN12X-C
Product Number8184474
Product FamilySLN12X
Insert Geometry
Depth of Cut Max — mm (APMX)10.0 mm
Dimensions
Cutting Diameter — mm (DC)52.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSLN12X
ShankFraise hémisphérique DIN 8030 A
Through Coolant Yes
Reference Numbers
EDP Number8184474
EAN3603603955011
File Type Download
52A05R-S90LN12X-C — 3D Model STP Download
52A05R-S90LN12X-C — 2D Model DXF Download
52A05R-S90LN12X-C — Line Drawing PDF Download
