63A08R-S90LN12X-C
63A08R-S90LN12X-C
63A08R-S90LN12X-C

63A08R-S90LN12X-C

UGC DOR8184476
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$993.00 CAD - $993.00 CAD
$993.00 CAD
$993.00 CAD - $993.00 CAD
$993.00 CAD

Vendu en lots de : 1

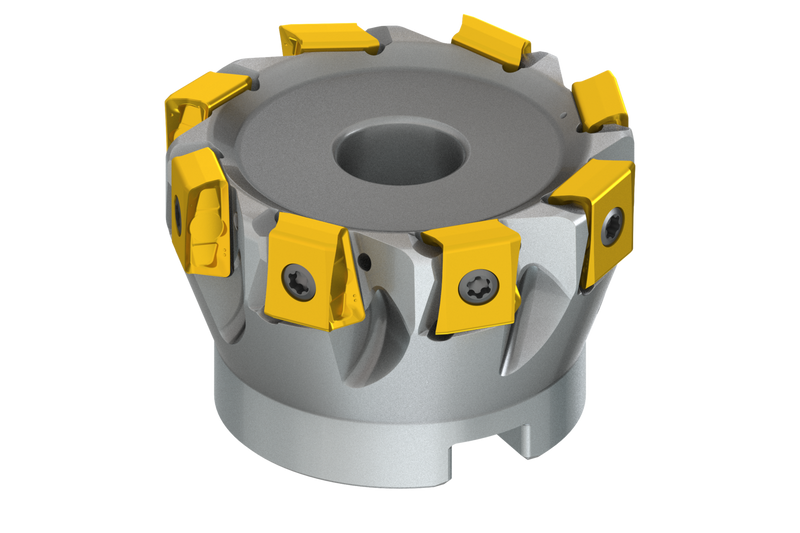

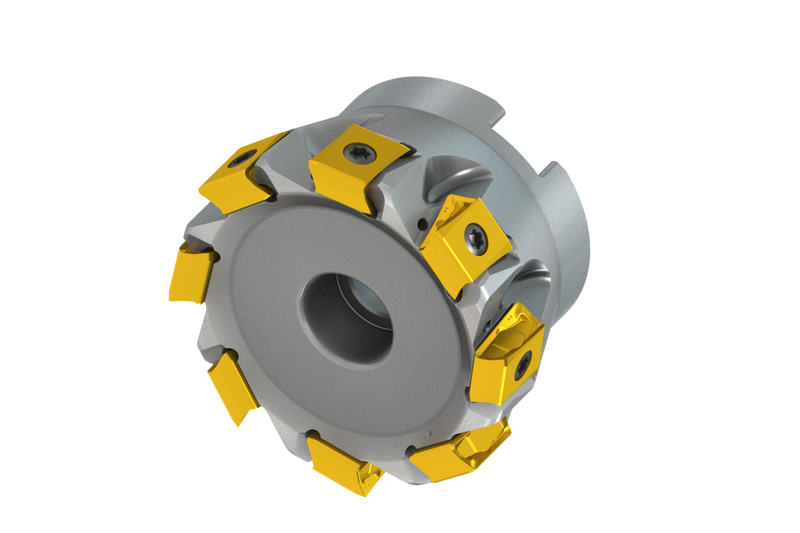

Fraise à épaulement à géométrie double négative qui utilise 8 plaquettes double face LNEX 1210.., diamètre de coupe 63 mm avec un angle d'attaque de 90° et un alésage de raccordement de 22 mm selon DIN 8030-A, longueur fonctionnelle de 40 mm et arrosage central pour le surfaçage, le fraisage d'épaulements peu profonds, le fraisage d'épaulements profonds, le fraisage en plongée et le fraisage de rainures peu profondes avec une profondeur de coupe maximale de 10 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)63A08R-S90LN12X-C
Product Number8184476
Product FamilySLN12X
Insert Geometry
Depth of Cut Max — mm (APMX)10.0 mm
Dimensions
Cutting Diameter — mm (DC)63.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignSLN12X
ShankFraise cloche DIN 8030 A
Through Coolant Yes
Reference Numbers
EDP Number8184476
EAN3603603955035
File Type Download
63A08R-S90LN12X-C — 3D Model STP Download
63A08R-S90LN12X-C — 2D Model DXF Download
63A08R-S90LN12X-C — Line Drawing PDF Download
