80A07R-S90LN12X-C
80A07R-S90LN12X-C
80A07R-S90LN12X-C

80A07R-S90LN12X-C

UGC DOR8185934
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$996.00 CAD - $996.00 CAD
$996.00 CAD
$996.00 CAD - $996.00 CAD
$996.00 CAD

Vendu en lots de : 1

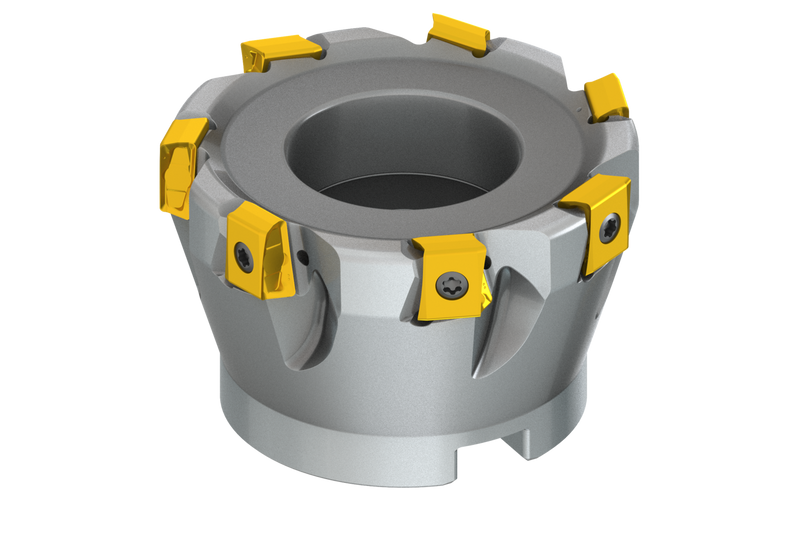

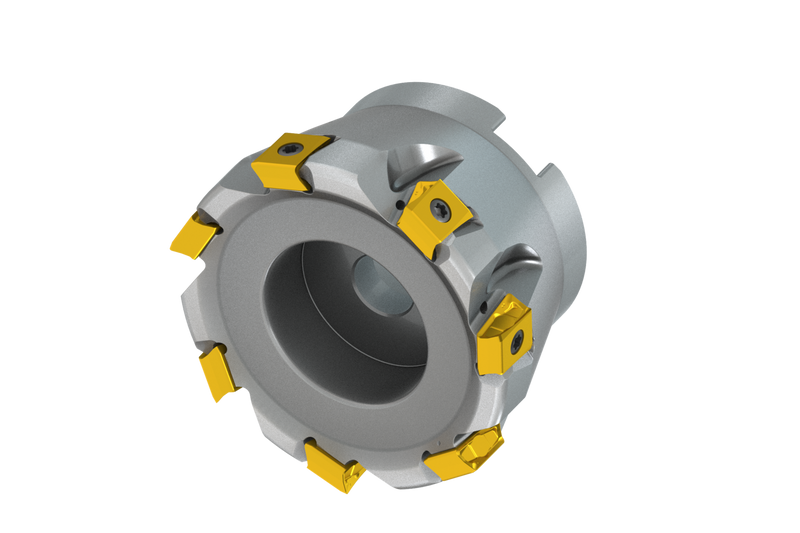

Fraise à épaule avec géométrie double négative qui utilise 7 plaquettes double face LNEX 1210.., diamètre de coupe 80mm avec angle d'attaque de 90° et alésage de raccordement de 27mm selon DIN 8030-A, longueur fonctionnelle de 50mm et arrosage interne, pas différentiel pour surfaçage, fraisage d'épaulement peu profond, fraisage d'épaulement profond, fraisage en plongée et fraisage de rainures peu profondes avec une profondeur de coupe maximale de 10mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80A07R-S90LN12X-C
Product Number8185934
Product FamilySLN12X
Insert Geometry
Depth of Cut Max — mm (APMX)10.0 mm
Dimensions
Cutting Diameter — mm (DC)80.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — mm (DCON)27.0 mm
Number of Flutes (NOF)7
Tool Information
Tool DesignSLN12X
ShankFraise-disque DIN 8030 A
Through Coolant Yes
Reference Numbers
EDP Number8185934
EAN3603603958043
File Type Download
80A07R-S90LN12X-C — 3D Model STP Download
80A07R-S90LN12X-C — 2D Model DXF Download
80A07R-S90LN12X-C — Line Drawing PDF Download
