80A10R-S90LN12X-C
80A10R-S90LN12X-C
80A10R-S90LN12X-C

80A10R-S90LN12X-C

UGC DOR8185935
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,114.00 CAD - $1,114.00 CAD
$1,114.00 CAD
$1,114.00 CAD - $1,114.00 CAD
$1,114.00 CAD

Vendu en lots de : 1

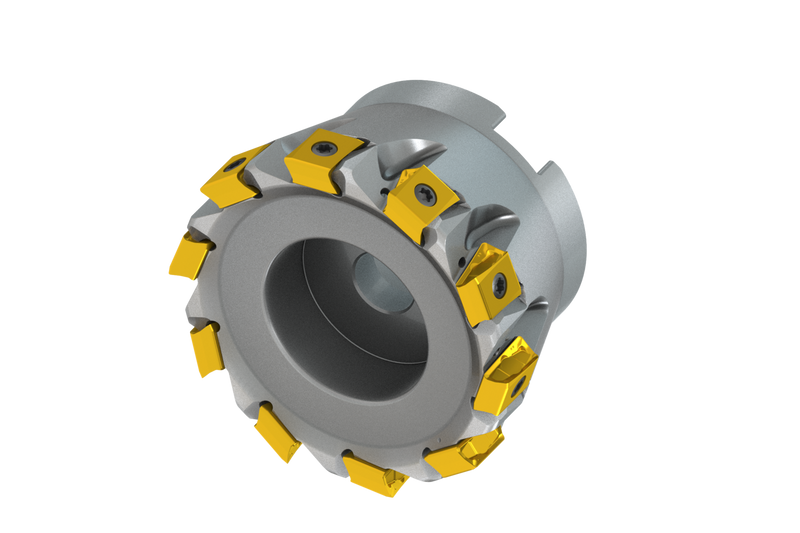

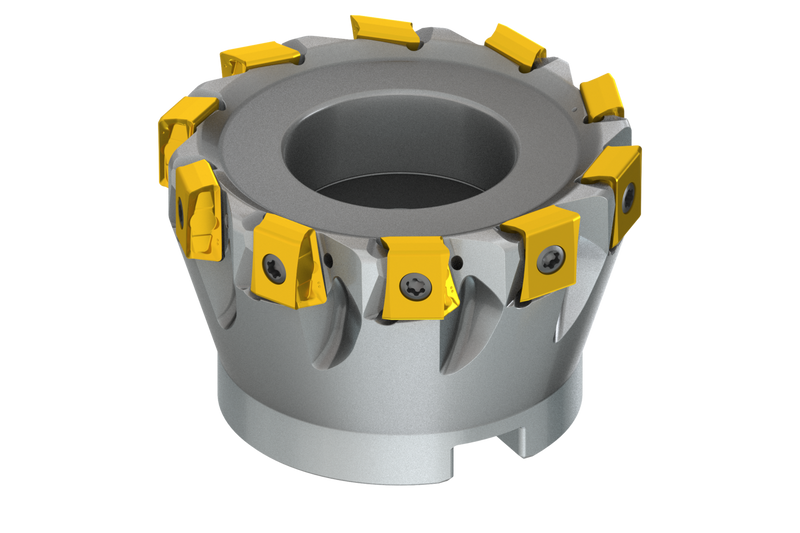

Fraise à épaule avec géométrie double négative qui utilise 10 plaquettes double face LNEX 1210.., diamètre de coupe 80 mm avec un angle d'attaque de 90° et un alésage de connexion de 27 mm selon DIN 8030-A, 50 mm fonctionnel et, arrosage central pour le surfaçage, le fraisage d'épaulement peu profond, le fraisage d'épaulement profond, le fraisage en plongée et le fraisage de rainures peu profondes avec une profondeur de coupe maximale de 10 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80A10R-S90LN12X-C
Product Number8185935
Product FamilySLN12X
Insert Geometry
Depth of Cut Max — mm (APMX)10.0 mm
Dimensions
Cutting Diameter — mm (DC)80.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — mm (DCON)27.0 mm
Number of Flutes (NOF)10
Tool Information
Tool DesignSLN12X
ShankFraise à surfacer-dresser DIN 8030 A
Through Coolant Yes
Reference Numbers
EDP Number8185935
EAN3603603958050
File Type Download
80A10R-S90LN12X-C — 3D Model STP Download
80A10R-S90LN12X-C — 2D Model DXF Download
80A10R-S90LN12X-C — Line Drawing PDF Download
