100A08R-S90LN12X-C
100A08R-S90LN12X-C
100A08R-S90LN12X-C

100A08R-S90LN12X-C

UGC DOR8185936
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,141.00 CAD - $1,141.00 CAD
$1,141.00 CAD
$1,141.00 CAD - $1,141.00 CAD
$1,141.00 CAD

Vendu en lots de : 1

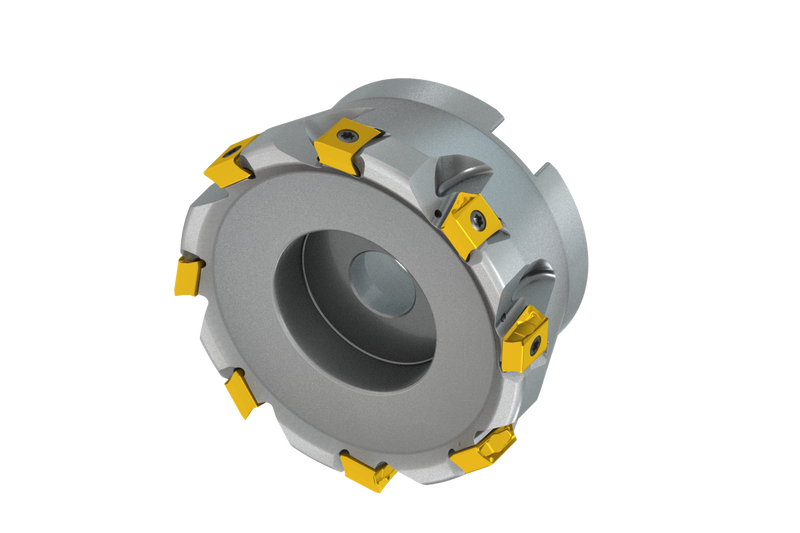

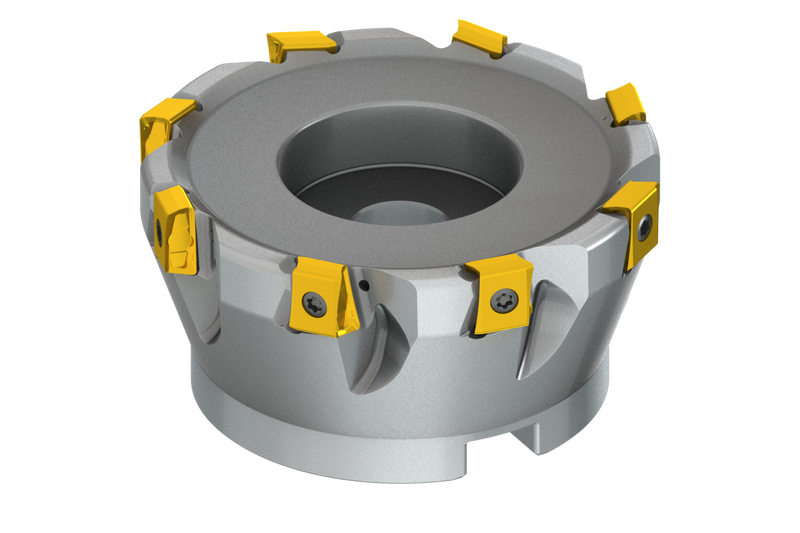

Fraise à épaulement à géométrie double négative qui utilise 8 plaquettes double face LNEX 1210.., diamètre de coupe 100mm avec un angle d'attaque de 90° et un alésage de raccordement de 32mm selon DIN 8030-A, longueur fonctionnelle de 50mm et, arrosage central et pas différentiel pour le surfaçage, le fraisage d'épaulements peu profonds, le fraisage d'épaulements profonds, le fraisage en plongée et le fraisage de rainures peu profondes avec une profondeur de coupe maximale de 10mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)100A08R-S90LN12X-C
Product Number8185936
Product FamilySLN12X
Insert Geometry
Depth of Cut Max — mm (APMX)10.0 mm

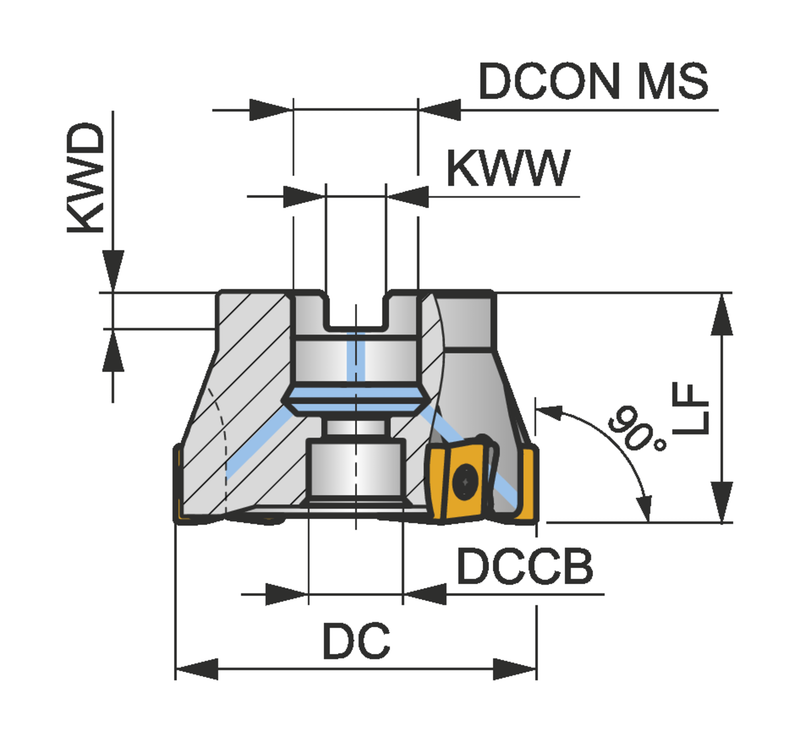

Dimensions
Cutting Diameter — mm (DC)100.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignSLN12X
ShankFraise en bout DIN 8030 A
Through Coolant Yes
Reference Numbers
EDP Number8185936
EAN3603603958067
File Type Download
100A08R-S90LN12X-C — 3D Model STP Download
100A08R-S90LN12X-C — 2D Model DXF Download
100A08R-S90LN12X-C — Line Drawing PDF Download
