125A12R-S90LN12X-C
125A12R-S90LN12X-C
125A12R-S90LN12X-C

125A12R-S90LN12X-C

UGC DOR8185938
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,490.00 CAD - $1,490.00 CAD
$1,490.00 CAD
$1,490.00 CAD - $1,490.00 CAD
$1,490.00 CAD

Vendu en lots de : 1

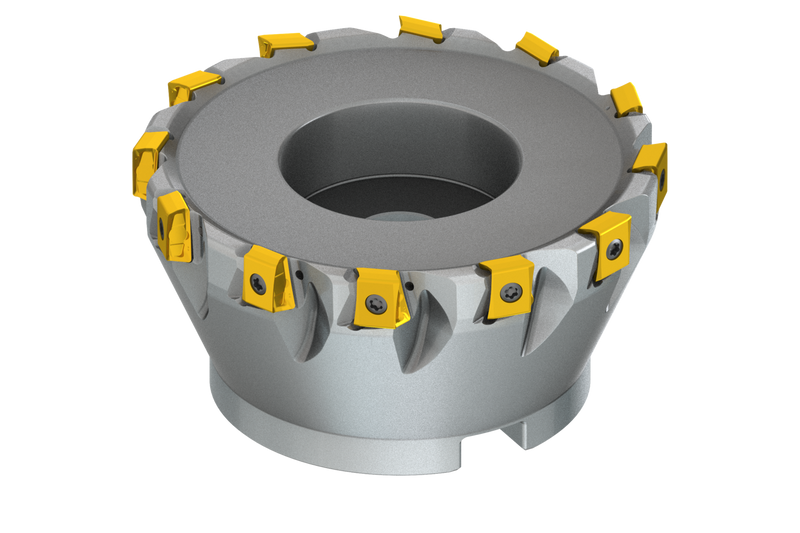

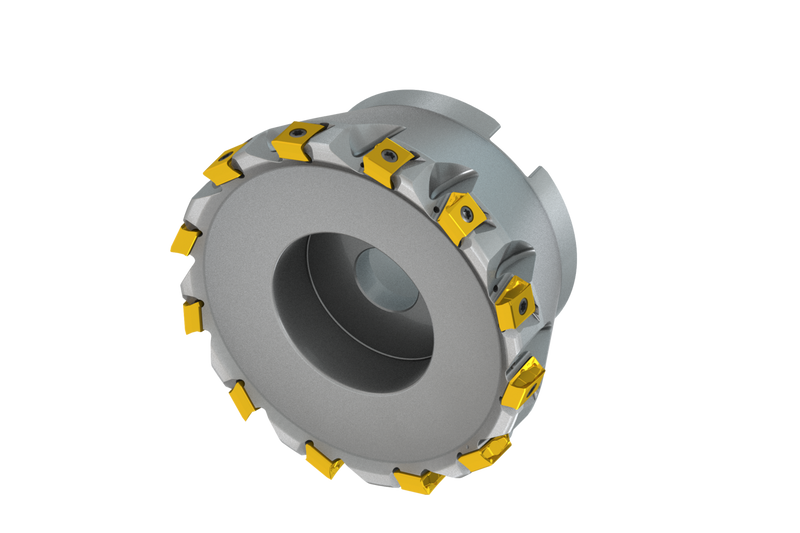

Fraise à épaule avec géométrie double négative qui utilise 12 plaquettes double face LNEX 1210.., diamètre de coupe 125 mm avec angle d'attaque de 90° et alésage de raccordement de 40 mm selon DIN 8030-A, longueur fonctionnelle de 63 mm, arrosage central et pas différentiel pour le surfaçage, le fraisage d'épaulement peu profond, le fraisage d'épaulement profond, le fraisage en plongée et le fraisage de rainures peu profondes avec une profondeur de coupe maximale de 10 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125A12R-S90LN12X-C
Product Number8185938
Product FamilySLN12X
Insert Geometry
Depth of Cut Max — mm (APMX)10.0 mm
Dimensions
Cutting Diameter — mm (DC)125.0 mm
Functional Length — mm (LF)63.0 mm
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)12
Tool Information
Tool DesignSLN12X
ShankFraise-scie DIN 8030 A
Through Coolant Yes
Reference Numbers
EDP Number8185938
EAN3603603958081
File Type Download
125A12R-S90LN12X-C — 3D Model STP Download
125A12R-S90LN12X-C — 2D Model DXF Download
125A12R-S90LN12X-C — Line Drawing PDF Download
