25A2R042A25-SLN12X-C
25A2R042A25-SLN12X-C
25A2R042A25-SLN12X-C

25A2R042A25-SLN12X-C

UGC DOR8185950
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$499.00 CAD - $499.00 CAD
$499.00 CAD
$499.00 CAD - $499.00 CAD
$499.00 CAD

Vendu en lots de : 1

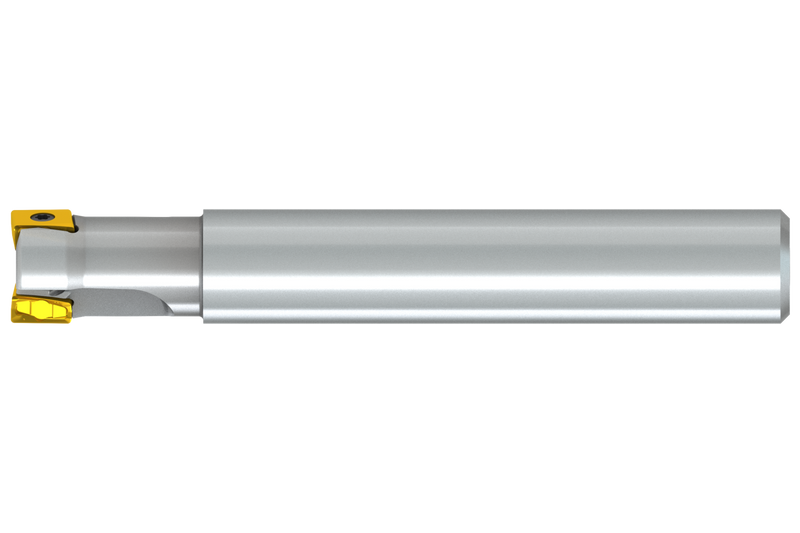

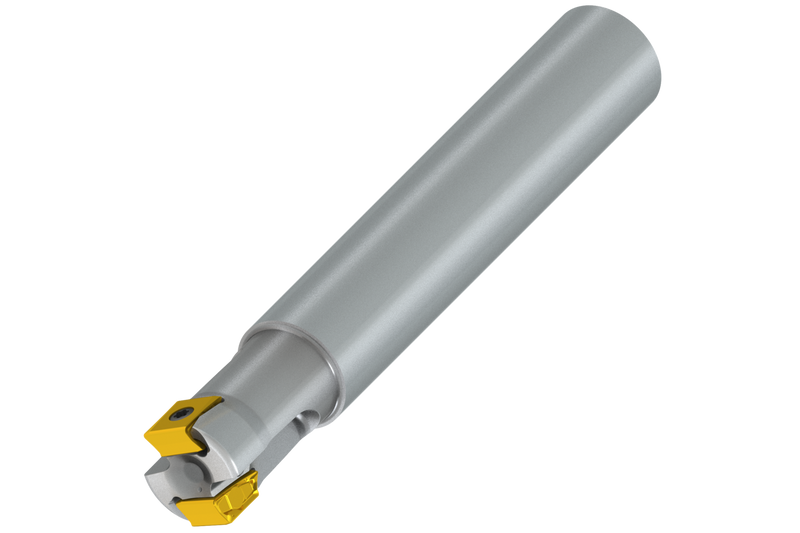

Fraise à épaule à géométrie double négative utilisant 2 plaquettes double face LNEX 1210.., diamètre de coupe 25 mm avec un angle d'attaque de 90° et une queue cylindrique de 25 mm conforme à la norme DIN 1835A, longueur utile de 42 mm et longueur totale de 170 mm, arrosage interne pour le surfaçage, le fraisage d'épaulements peu profonds, le fraisage d'épaulements profonds, le fraisage en plongée et le fraisage de rainures peu profondes avec une profondeur de coupe maximale de 10 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25A2R042A25-SLN12X-C
Product Number8185950
Product FamilySLN12X
Insert Geometry
Depth of Cut Max — mm (APMX)10.0 mm

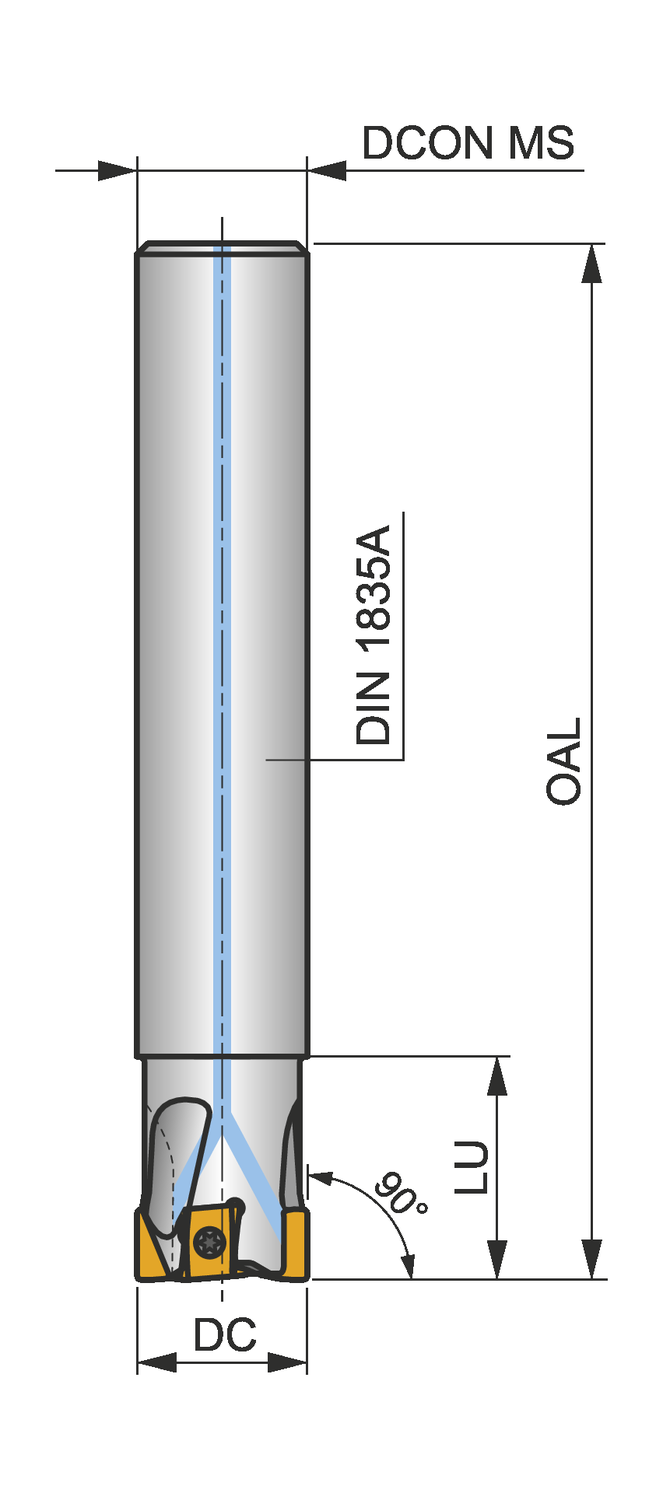

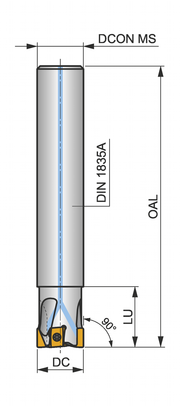

Dimensions
Cutting Diameter — mm (DC)25.0 mm
Overall Length — mm (OAL)170.0 mm
Usable Length — mm (LU)42.0 mm
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSLN12X
ShankQueue cylindrique DIN 1835A
Through Coolant Yes
Reference Numbers
EDP Number8185950
EAN3603603958098
File Type Download
25A2R042A25-SLN12X-C — 3D Model STP Download
25A2R042A25-SLN12X-C — 2D Model DXF Download
25A2R042A25-SLN12X-C — Line Drawing PDF Download
