32A3R090A32-SLN12X-C
32A3R090A32-SLN12X-C
32A3R090A32-SLN12X-C

32A3R090A32-SLN12X-C

UGC DOR8185953
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$559.00 CAD - $559.00 CAD
$559.00 CAD
$559.00 CAD - $559.00 CAD
$559.00 CAD

Vendu en lots de : 1

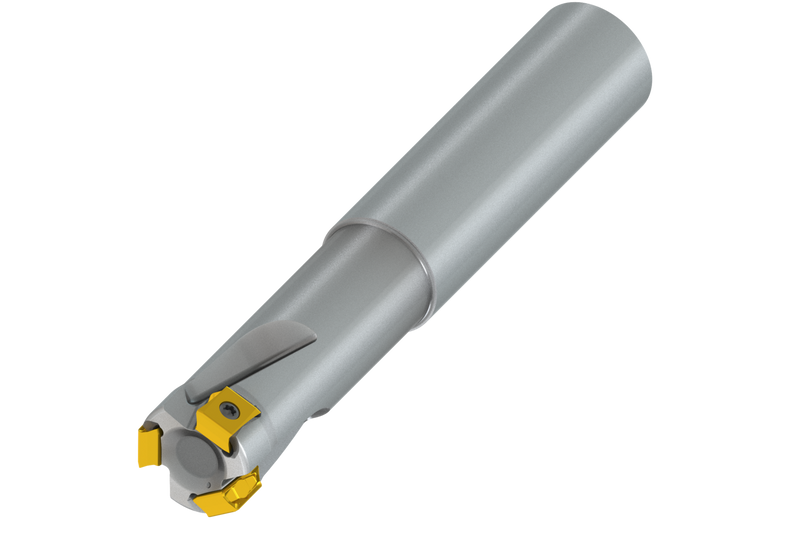

Fraise à épaule avec géométrie double négative qui utilise 3 plaquettes double face LNEX 1210.., diamètre de coupe de 32 mm avec angle d'attaque de 90° et queue cylindrique de 32 mm selon DIN 1835A, longueur utile de 90 mm et longueur totale de 195 mm, arrosage central pour le surfaçage, le fraisage d'épaulement peu profond, le fraisage d'épaulement profond, le fraisage en plongée et le fraisage de rainures peu profondes avec une profondeur de coupe maximale de 10 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32A3R090A32-SLN12X-C
Product Number8185953
Product FamilySLN12X
Insert Geometry
Depth of Cut Max — mm (APMX)10.0 mm

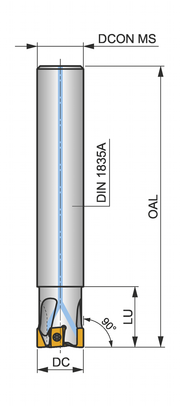

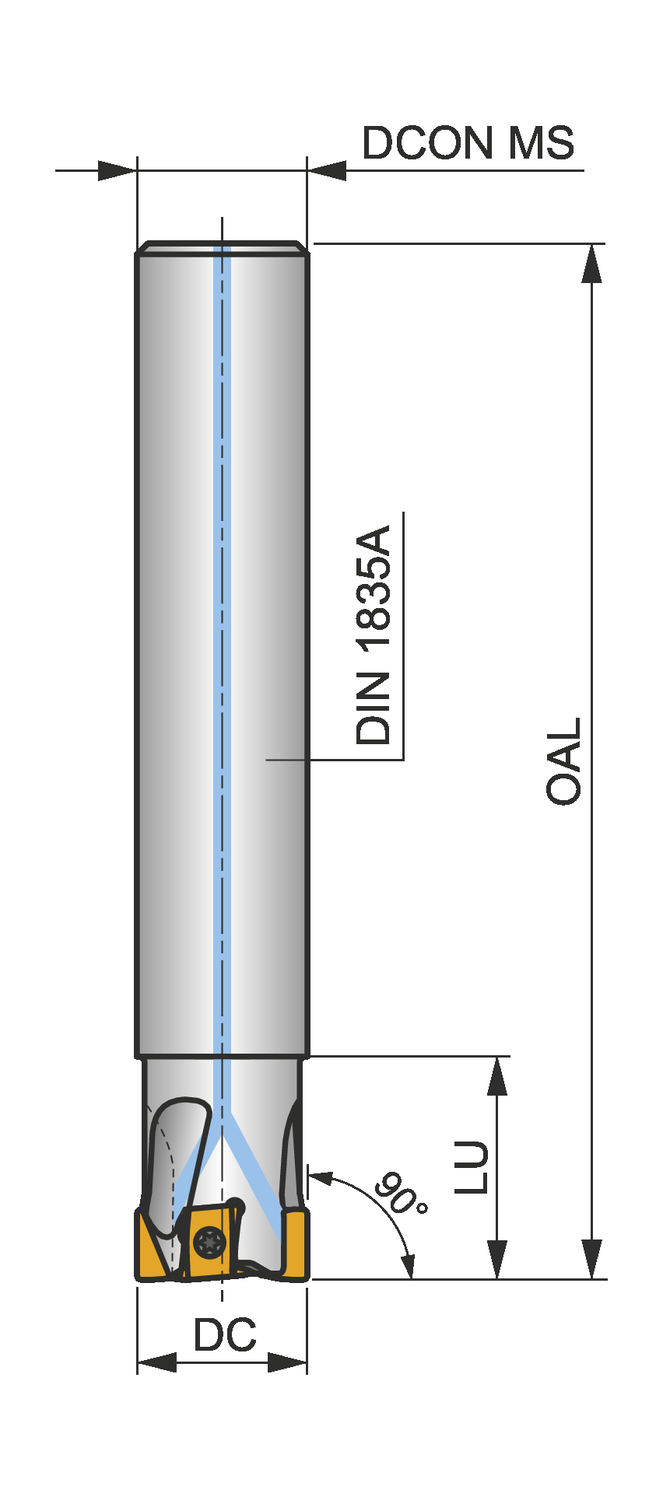

Dimensions
Cutting Diameter — mm (DC)32.0 mm
Overall Length — mm (OAL)195.0 mm
Usable Length — mm (LU)90.0 mm
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSLN12X
ShankQueue cylindrique DIN 1835A
Through Coolant Yes
Reference Numbers
EDP Number8185953
EAN3603603958128
File Type Download
32A3R090A32-SLN12X-C — 3D Model STP Download
32A3R090A32-SLN12X-C — 2D Model DXF Download
32A3R090A32-SLN12X-C — Line Drawing PDF Download
