25A2R042B25-SLN12X-C
25A2R042B25-SLN12X-C
25A2R042B25-SLN12X-C

25A2R042B25-SLN12X-C

UGC DOR8185956
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$517.00 CAD - $517.00 CAD
$517.00 CAD
$517.00 CAD - $517.00 CAD
$517.00 CAD

Vendu en lots de : 1

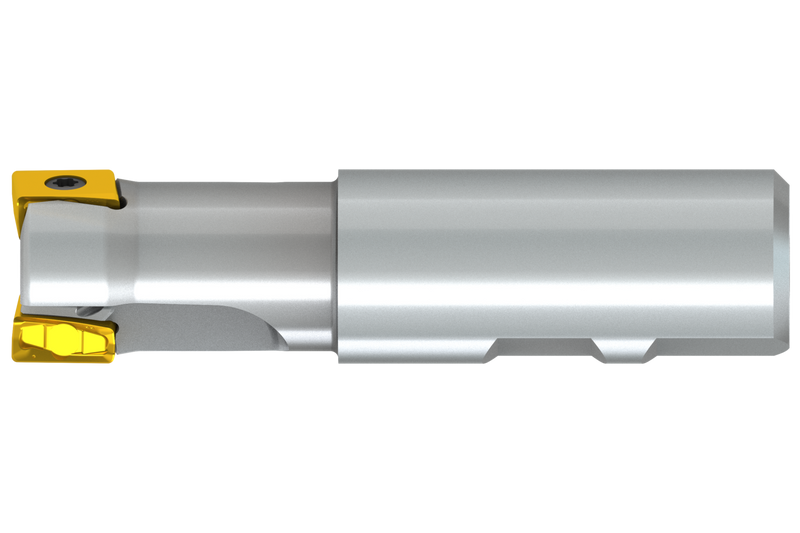

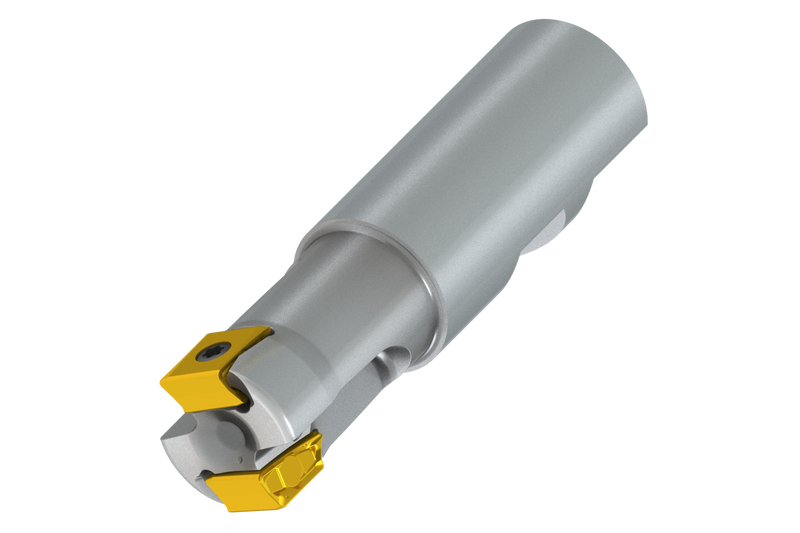

Fraise à épaule à géométrie double négative utilisant 2 plaquettes double face LNEX 1210.., diamètre de coupe 25 mm avec un angle d'attaque de 90° et une queue Weldon de 25 mm selon DIN 1835B, longueur utile 42 mm et longueur totale 100 mm, arrosage par l'intérieur pour le surfaçage, le fraisage d'épaulements peu profonds, le fraisage d'épaulements profonds, le fraisage en plongée et le fraisage de gorges peu profondes avec une profondeur de coupe maximale de 10 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25A2R042B25-SLN12X-C
Product Number8185956
Product FamilySLN12X
Insert Geometry
Depth of Cut Max — mm (APMX)10.0 mm

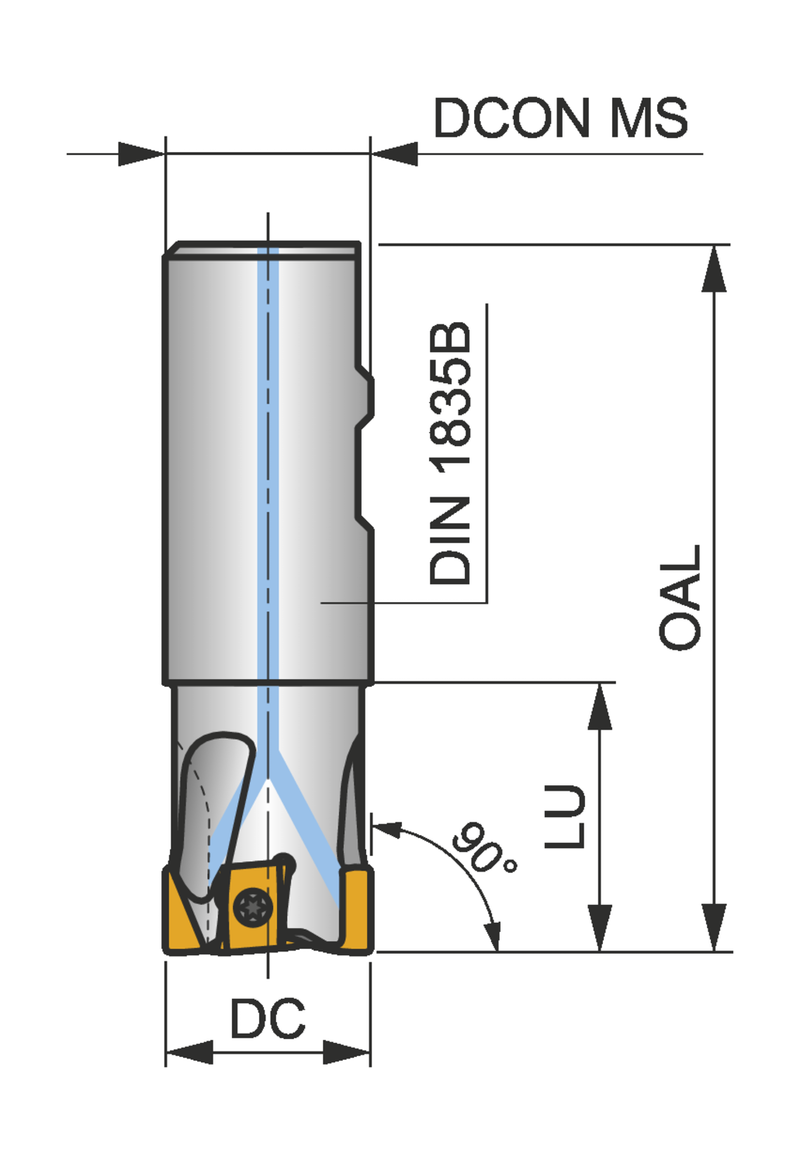

Dimensions
Cutting Diameter — mm (DC)25.0 mm
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)42.0 mm
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSLN12X
ShankQueue Weldon DIN 1835B
Through Coolant Yes
Reference Numbers
EDP Number8185956
EAN3603603958142
File Type Download
25A2R042B25-SLN12X-C — 3D Model STP Download
25A2R042B25-SLN12X-C — 2D Model DXF Download
25A2R042B25-SLN12X-C — Line Drawing PDF Download
