32A3R042B32-SLN12X-C
32A3R042B32-SLN12X-C
32A3R042B32-SLN12X-C

32A3R042B32-SLN12X-C

UGC DOR8185957
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$577.00 CAD - $577.00 CAD
$577.00 CAD
$577.00 CAD - $577.00 CAD
$577.00 CAD

Vendu en lots de : 1

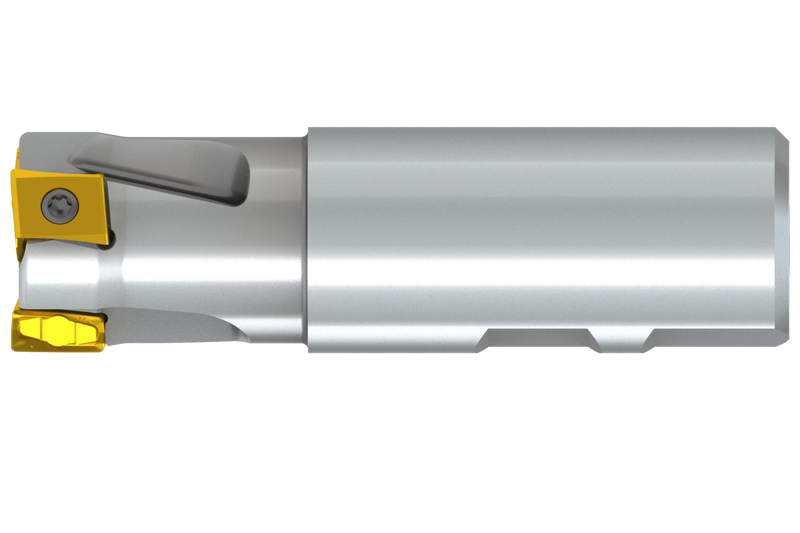

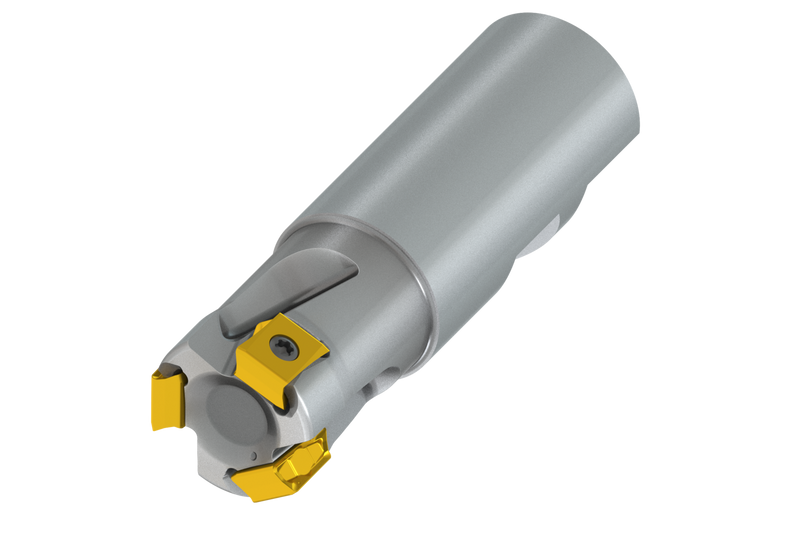

Fraise à épaulement à géométrie double négative qui utilise 3 inserts double face LNEX 1210.., diamètre de coupe de 32 mm avec un angle d'attaque de 90° et une queue Weldon de 32 mm selon DIN 1835B, longueur utile de 42 mm et longueur totale de 110 mm, arrosage central pour le surfaçage, le fraisage d'épaulements peu profonds, le fraisage d'épaulements profonds, le fraisage en plongée et le fraisage de rainures peu profondes avec une profondeur de coupe maximale de 10 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32A3R042B32-SLN12X-C
Product Number8185957
Product FamilySLN12X
Insert Geometry
Depth of Cut Max — mm (APMX)10.0 mm

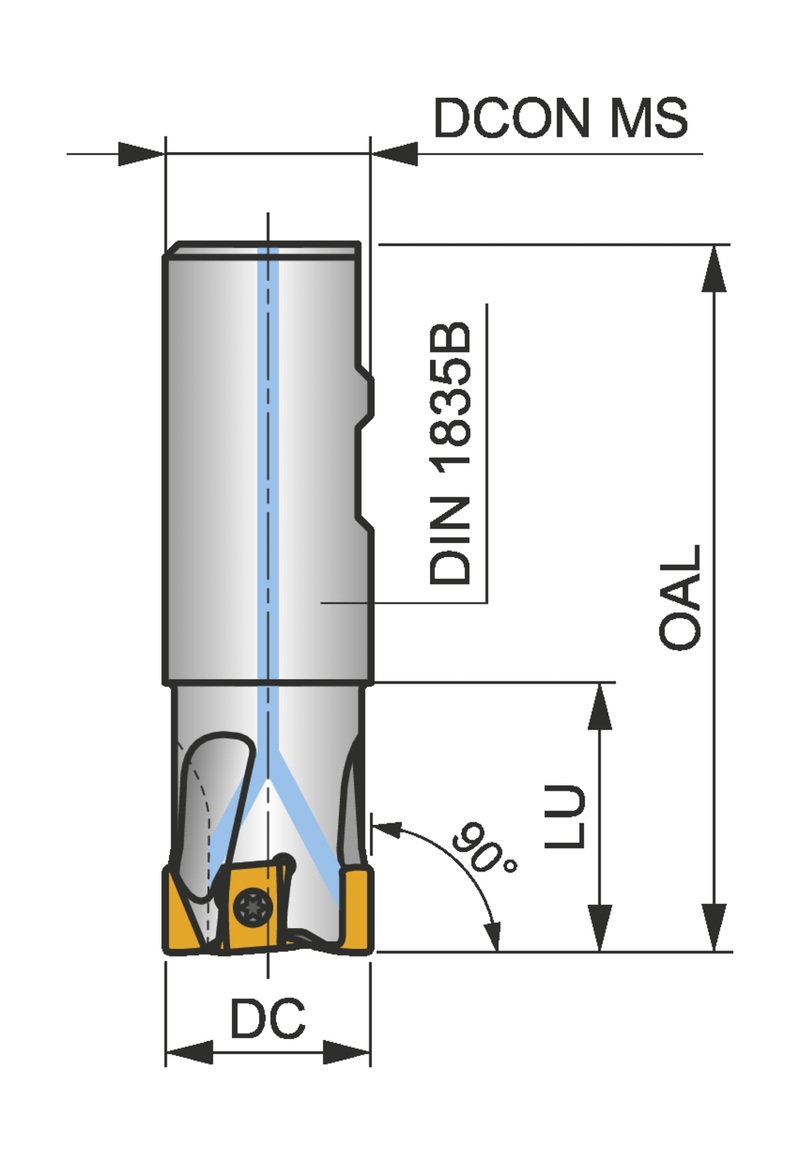

Dimensions
Cutting Diameter — mm (DC)32.0 mm
Overall Length — mm (OAL)110.0 mm
Usable Length — mm (LU)42.0 mm
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSLN12X
ShankQueue Weldon DIN 1835B
Through Coolant Yes
Reference Numbers
EDP Number8185957
EAN3603603958159
File Type Download
32A3R042B32-SLN12X-C — 3D Model STP Download
32A3R042B32-SLN12X-C — 2D Model DXF Download
32A3R042B32-SLN12X-C — Line Drawing PDF Download
