200A05R-IS90LN12X-C
200A05R-IS90LN12X-C
200A05R-IS90LN12X-C

200A05R-IS90LN12X-C

UGC DOR8185980
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$772.00 CAD - $772.00 CAD
$772.00 CAD
$772.00 CAD - $772.00 CAD
$772.00 CAD

Vendu en lots de : 1

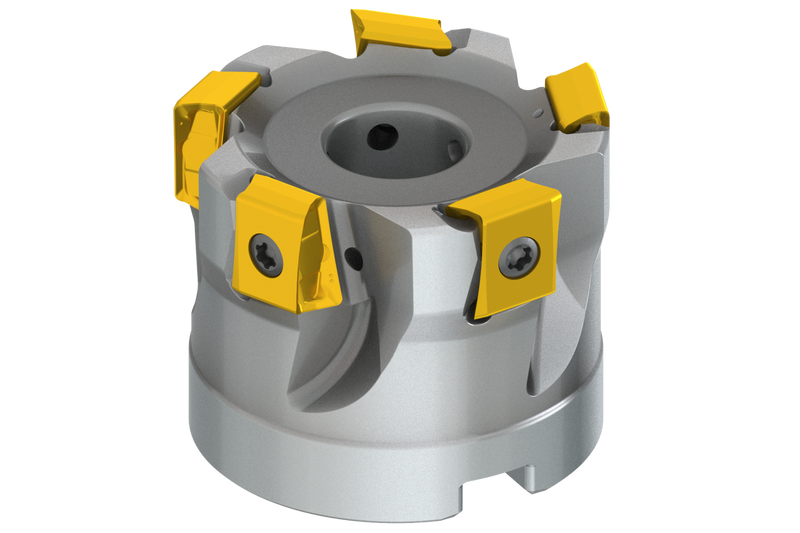

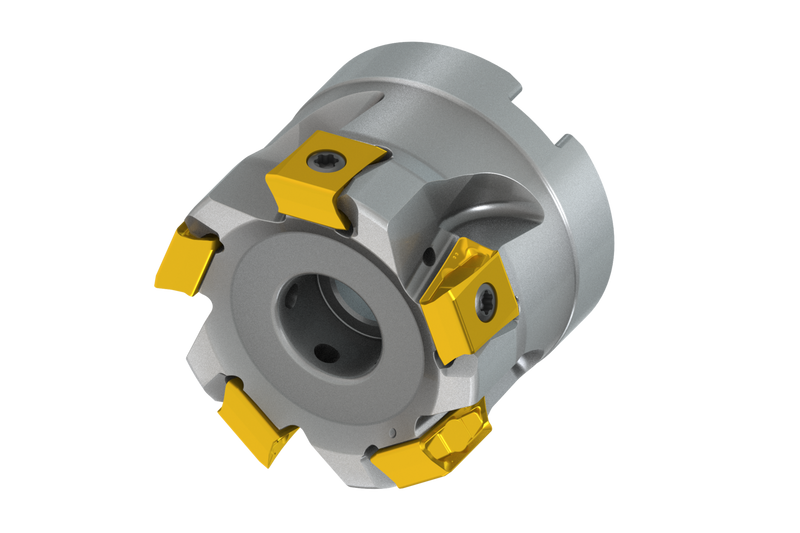

Fraise à épaule à géométrie double négative utilisant 5 plaquettes double face LNEX 1210.., diamètre de coupe 2,000" avec un angle d'approche de 90° et un alésage de raccordement de 0,750" selon DIN 8030-A, 1,575" fonctionnel et arrosage interne pour le surfaçage, le fraisage d'épaulement peu profond, le fraisage d'épaulement profond, le fraisage en plongée et le fraisage de rainures peu profondes avec une profondeur de coupe maximale de 0,394"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)200A05R-IS90LN12X-C
Product Number8185980
Product FamilyISLN12X
Dimensions
Cutting Diameter — in (DC)2.0"
Cutting Diameter — mm (DC)49.0 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)38.6 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)18.4 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSLN12X
ShankFraise-cloche DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8185980
EAN3603603958180
File Type Download
200A05R-IS90LN12X-C — 3D Model STP Download
200A05R-IS90LN12X-C — 2D Model DXF Download
200A05R-IS90LN12X-C — Line Drawing PDF Download
