200A06R-IS90LN12X-C
200A06R-IS90LN12X-C
200A06R-IS90LN12X-C

200A06R-IS90LN12X-C

UGC DOR8185981
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$803.00 CAD - $803.00 CAD
$803.00 CAD
$803.00 CAD - $803.00 CAD
$803.00 CAD

Vendu en lots de : 1

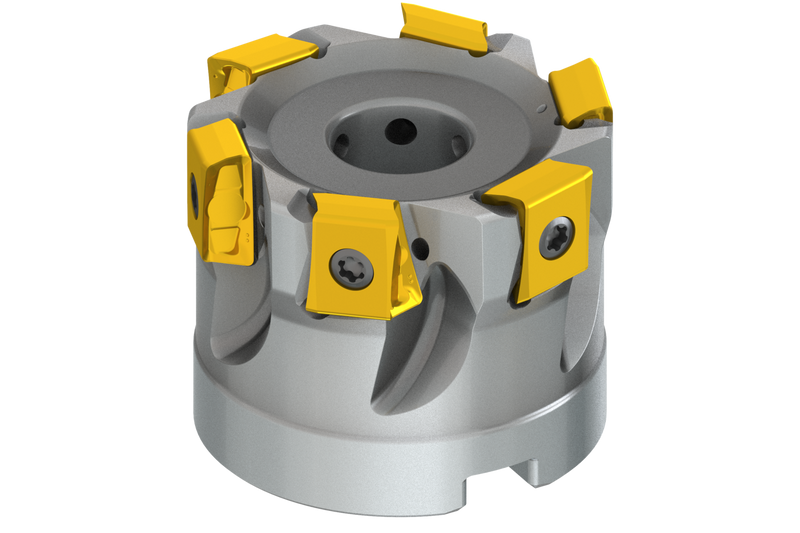

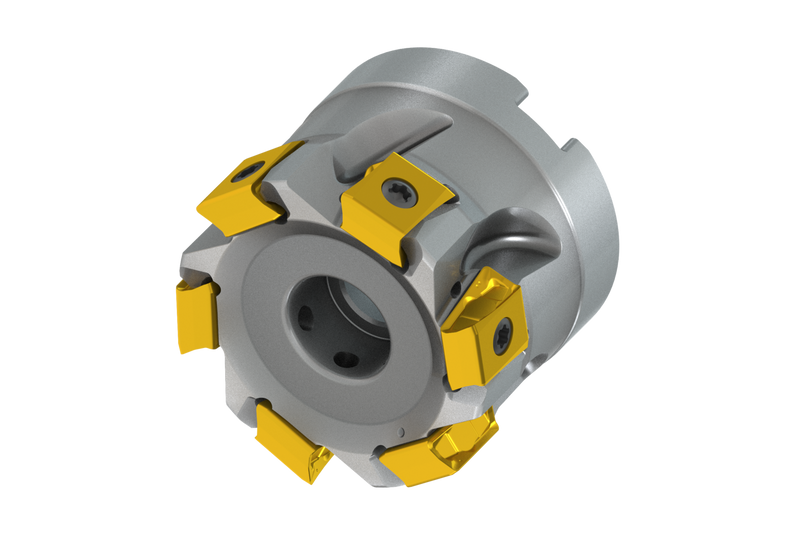

Fraise à épaulement avec géométrie double négative qui utilise 6 plaquettes doubles LNEX 1210.., diamètre de coupe de 50,8 mm avec un angle d'attaque de 90° et un alésage de connexion de 19,05 mm selon DIN 8030-A, une longueur fonctionnelle de 40 mm et un arrosage interne pour le surfaçage, le fraisage d'épaulements peu profonds, le fraisage d'épaulements profonds, le fraisage en plongée et le fraisage de gorges peu profondes avec une profondeur de coupe maximale de 10 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)200A06R-IS90LN12X-C
Product Number8185981
Product FamilyISLN12X
Dimensions
Cutting Diameter — in (DC)2.0"
Cutting Diameter — mm (DC)49.0 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)38.6 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)18.4 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSLN12X
ShankFraise cloche DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8185981
EAN3603603958197
File Type Download
200A06R-IS90LN12X-C — 3D Model STP Download
200A06R-IS90LN12X-C — 2D Model DXF Download
200A06R-IS90LN12X-C — Line Drawing PDF Download
