250A08R-IS90LN12X-C
250A08R-IS90LN12X-C
250A08R-IS90LN12X-C

250A08R-IS90LN12X-C

UGC DOR8185983
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$993.00 CAD - $993.00 CAD
$993.00 CAD
$993.00 CAD - $993.00 CAD
$993.00 CAD

Vendu en lots de : 1

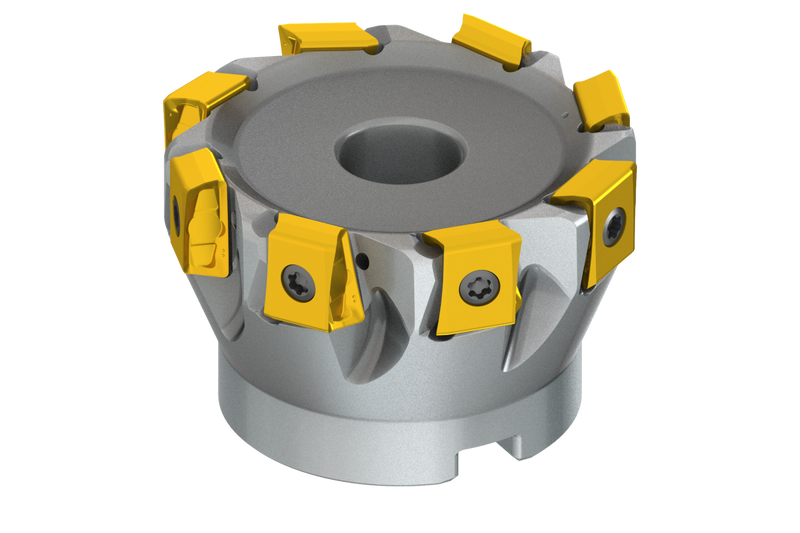

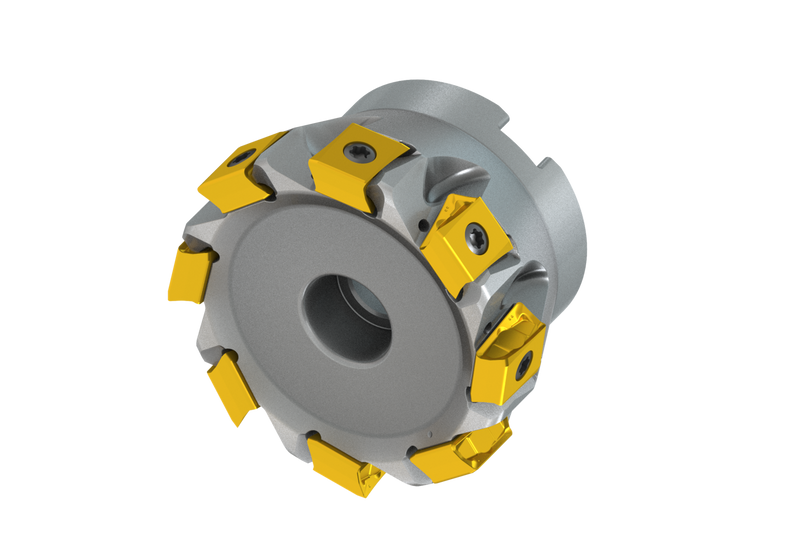

Fraise à épaulement à géométrie double négative qui utilise 8 plaquettes double face LNEX 1210.., diamètre de coupe 2,500" avec angle d'attaque de 90° et alésage de connexion de 0,750" selon DIN 8030-A, longueur fonctionnelle de 1,575" et arrosage central pour le surfaçage, le fraisage d'épaulements peu profonds, le fraisage d'épaulements profonds, le fraisage en plongée et le fraisage de rainures peu profondes avec une profondeur de coupe maximale de 0,394"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)250A08R-IS90LN12X-C
Product Number8185983
Product FamilyISLN12X
Dimensions
Cutting Diameter — in (DC)2.5"
Cutting Diameter — mm (DC)61.3 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)38.6 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)18.4 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignSLN12X
ShankFraise en bout DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8185983
EAN3603603958210
File Type Download
250A08R-IS90LN12X-C — 3D Model STP Download
250A08R-IS90LN12X-C — 2D Model DXF Download
250A08R-IS90LN12X-C — Line Drawing PDF Download
