500A12R-IS90LN12X-C
500A12R-IS90LN12X-C
500A12R-IS90LN12X-C

500A12R-IS90LN12X-C

UGC DOR8185987
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,490.00 CAD - $1,490.00 CAD
$1,490.00 CAD
$1,490.00 CAD - $1,490.00 CAD
$1,490.00 CAD

Vendu en lots de : 1

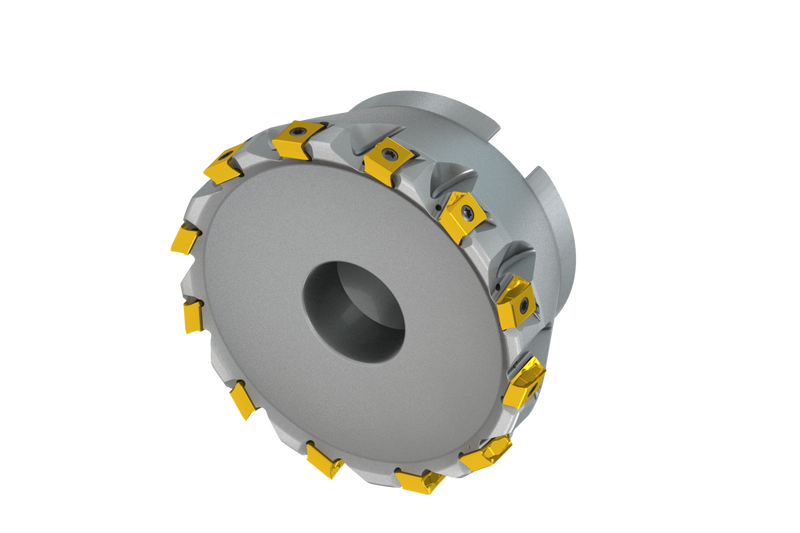

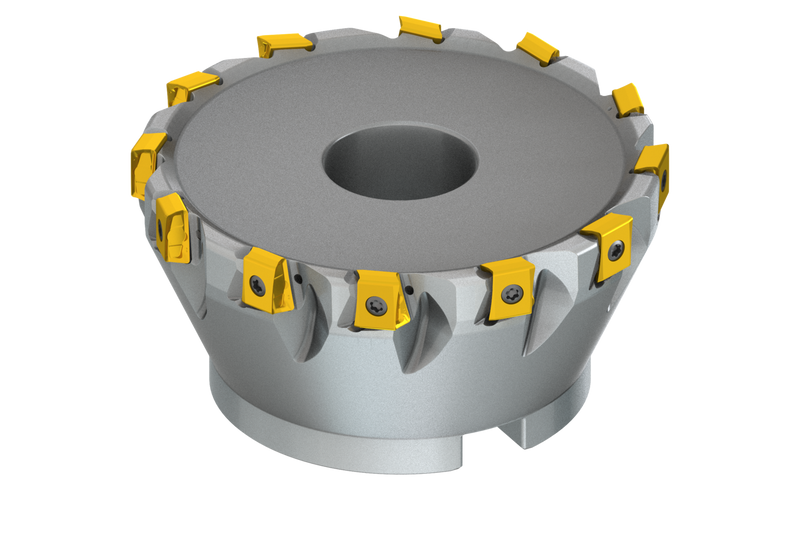

Fraise à épaulement à géométrie double négative utilisant 12 plaquettes double-face LNEX 1210.., diamètre de coupe 5,000" avec un angle d'attaque de 90° et un alésage de connexion de 1,500" selon DIN 8030-A, longueur fonctionnelle de 2,480" et arrosage central et pas différentiel pour le surfaçage, le fraisage d'épaulements peu profonds, le fraisage d'épaulements profonds, le fraisage en plongée et le fraisage de rainures peu profondes avec une profondeur de coupe maximale de 0,394"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)500A12R-IS90LN12X-C
Product Number8185987
Product FamilyISLN12X
Dimensions
Cutting Diameter — in (DC)5.0"
Cutting Diameter — mm (DC)122.5 mm
Functional Length — in (LF)2.48"
Functional Length — mm (LF)60.8 mm
Connection Dia. — in (DCON)1.5"
Connection Dia. — mm (DCON)36.8 mm
Number of Flutes (NOF)12
Tool Information
Tool DesignSLN12X
ShankFraise coquille DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8185987
EAN3603603958258
File Type Download
500A12R-IS90LN12X-C — 3D Model STP Download
500A12R-IS90LN12X-C — 2D Model DXF Download
500A12R-IS90LN12X-C — Line Drawing PDF Download
