125A3R355C125-ISLN12X-C
125A3R355C125-ISLN12X-C
125A3R355C125-ISLN12X-C

125A3R355C125-ISLN12X-C

UGC DOR8186010
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$559.00 CAD - $559.00 CAD
$559.00 CAD
$559.00 CAD - $559.00 CAD
$559.00 CAD

Vendu en lots de : 1

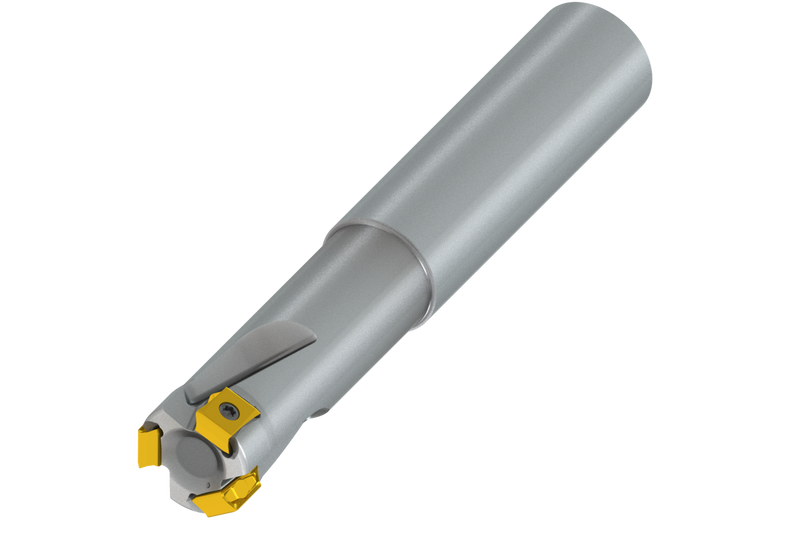

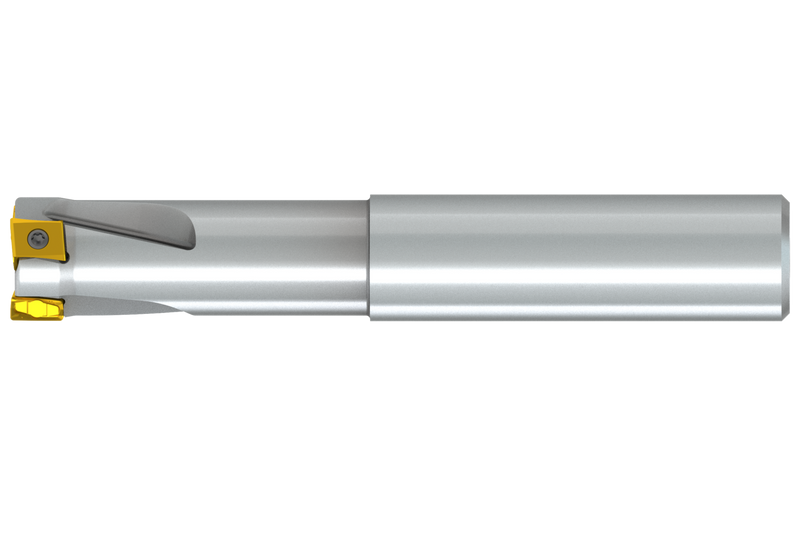

Fraise à épaule avec géométrie double négative qui utilise 3 plaquettes double face LNEX 1210.., diamètre de coupe 1,250" avec un angle d'attaque de 90° et une queue cylindrique de 1,250" selon DIN 1835A, longueur utile de 3,550" et longueur totale de 7,677", arrosage central pour le surfaçage, le fraisage d'épaulements peu profonds, le fraisage d'épaulements profonds, le fraisage en plongée et le fraisage de rainures peu profondes avec une profondeur de coupe maximale de 0,394"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125A3R355C125-ISLN12X-C
Product Number8186010
Product FamilyISLN12X

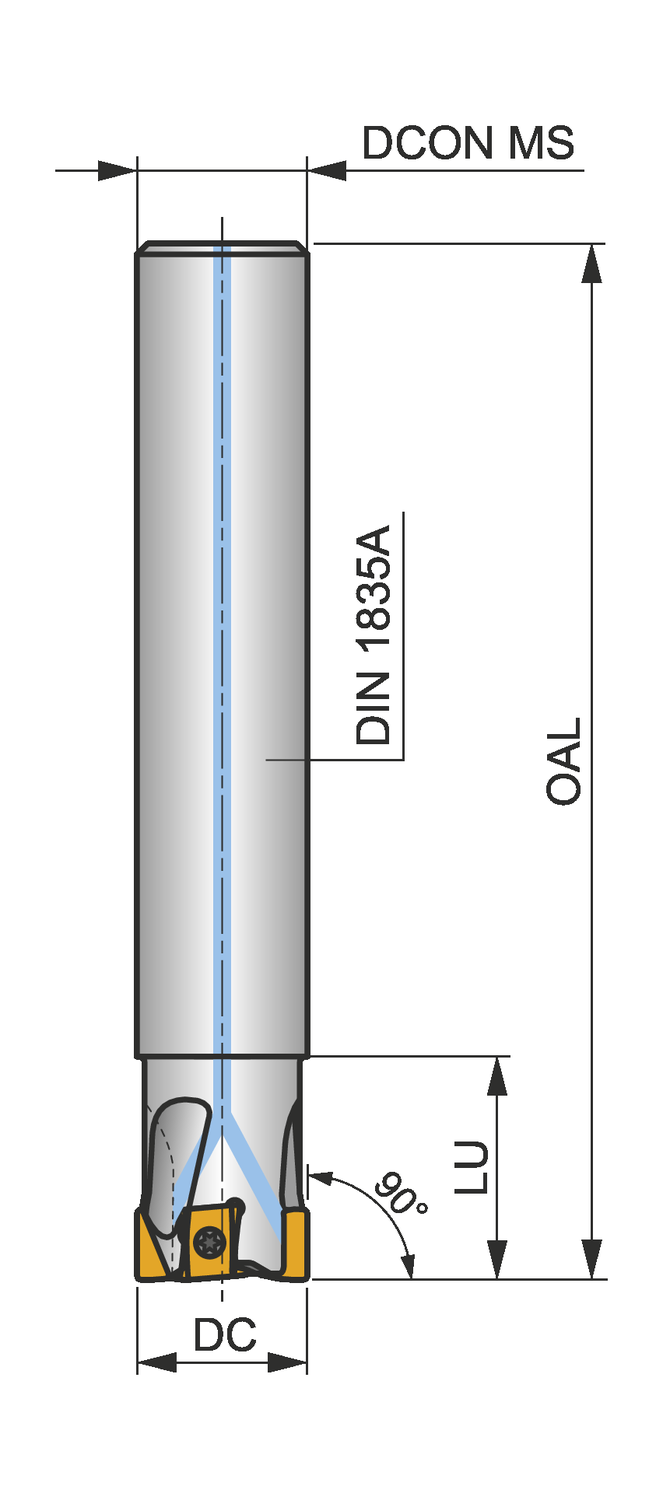

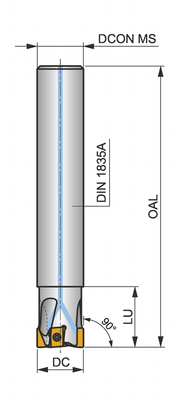

Dimensions
Cutting Diameter — in (DC)1.25"
Cutting Diameter — mm (DC)30.6 mm
Overall Length — in (OAL)7.677"
Overall Length — mm (OAL)188.1 mm
Usable Length — in (LU)3.55"
Usable Length — mm (LU)87.0 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)30.6 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSLN12X
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8186010
EAN3603603958272
File Type Download
125A3R355C125-ISLN12X-C — 3D Model STP Download
125A3R355C125-ISLN12X-C — 2D Model DXF Download
125A3R355C125-ISLN12X-C — Line Drawing PDF Download
