100A2R165W100-ISLN12X-C
100A2R165W100-ISLN12X-C
100A2R165W100-ISLN12X-C

100A2R165W100-ISLN12X-C

UGC DOR8186012
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$517.00 CAD - $517.00 CAD
$517.00 CAD
$517.00 CAD - $517.00 CAD
$517.00 CAD

Vendu en lots de : 1

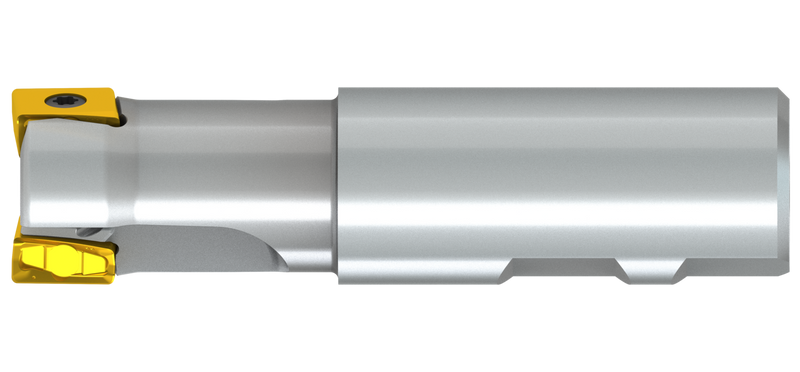

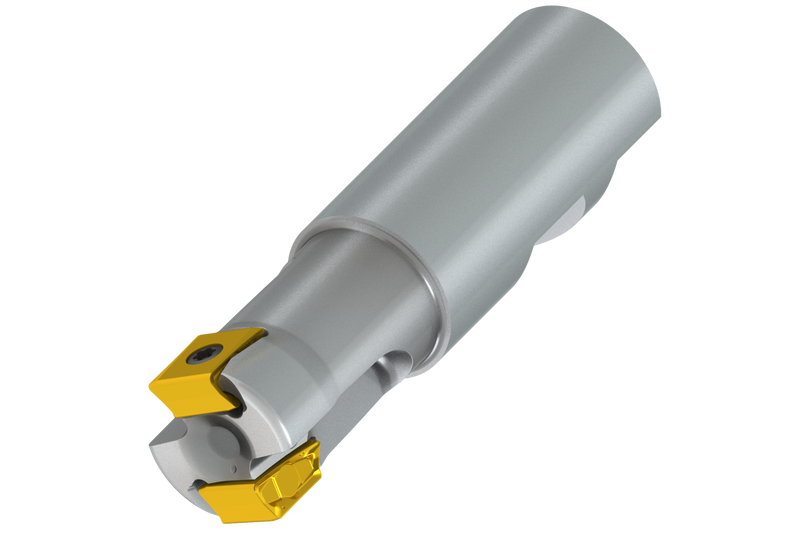

Fraise à épaule avec géométrie double négative qui utilise 2 plaquettes double face LNEX 1210.., diamètre de coupe 1.000" avec un angle d'attaque de 90° et un manche Weldon de 1.000" selon DIN 1835B, longueur utile de 1.654" et longueur totale de 3.937", arrosage central pour le surfaçage, le fraisage d'épaulement peu profond, le fraisage d'épaulement profond, le fraisage en plongée et le fraisage de rainures peu profondes avec une profondeur de coupe maximale de 0.394"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)100A2R165W100-ISLN12X-C
Product Number8186012
Product FamilyISLN12X

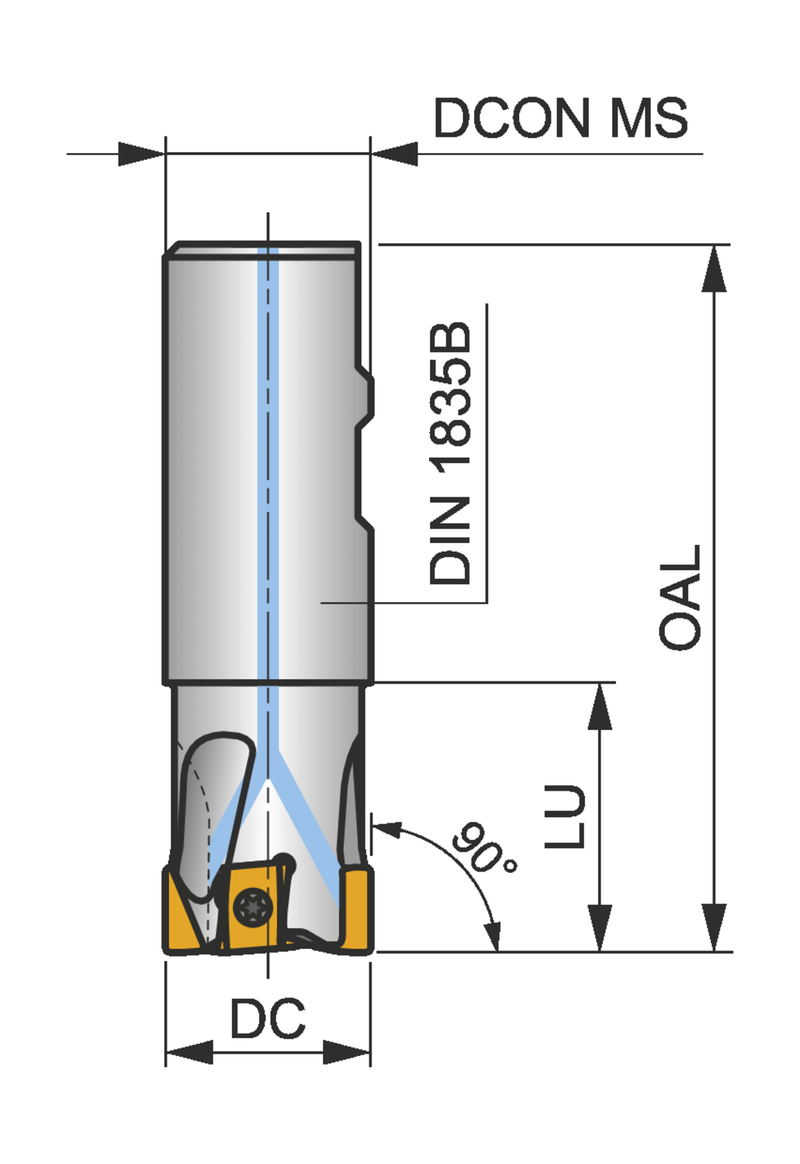

Dimensions
Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)24.5 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)96.5 mm
Usable Length — in (LU)1.654"
Usable Length — mm (LU)40.5 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)24.5 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSLN12X
ShankQueue de Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8186012
EAN3603603958296
File Type Download
100A2R165W100-ISLN12X-C — 3D Model STP Download
100A2R165W100-ISLN12X-C — 2D Model DXF Download
100A2R165W100-ISLN12X-C — Line Drawing PDF Download
