125A3R165W125-ISLN12X-C
125A3R165W125-ISLN12X-C
125A3R165W125-ISLN12X-C

125A3R165W125-ISLN12X-C

UGC DOR8186013
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$577.00 CAD - $577.00 CAD
$577.00 CAD
$577.00 CAD - $577.00 CAD
$577.00 CAD

Vendu en lots de : 1

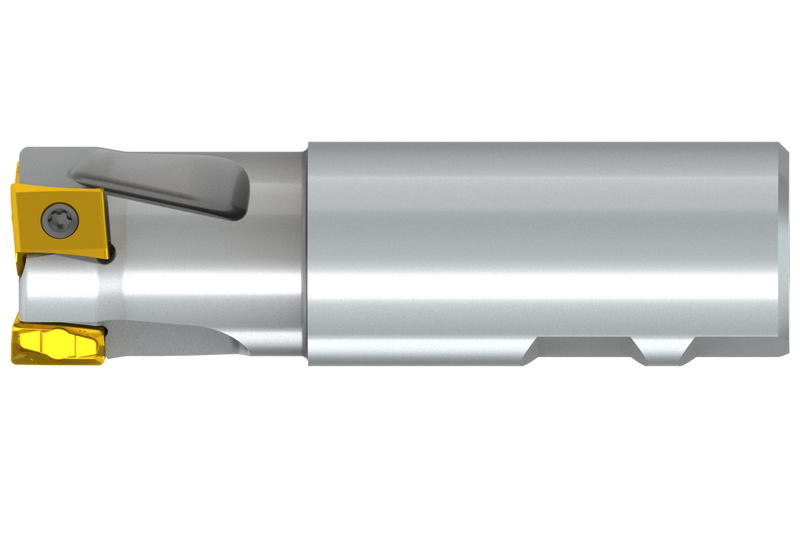

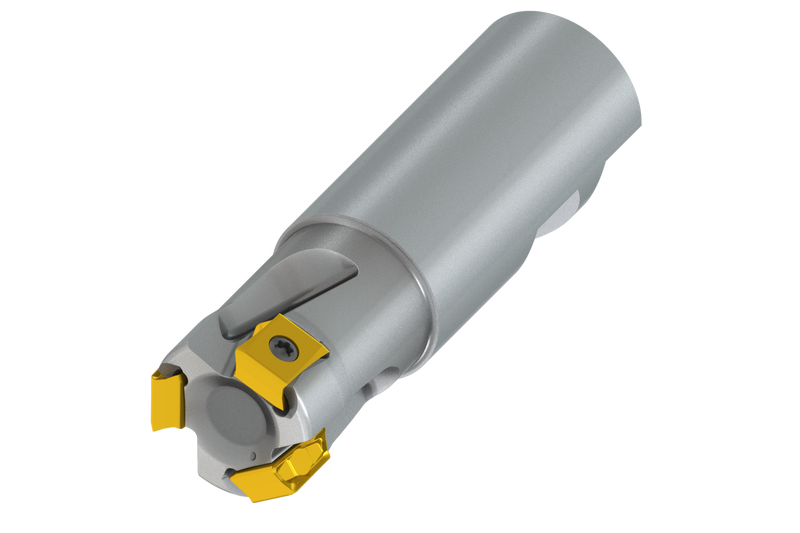

Fraise à épaule avec géométrie négative double qui utilise 3 plaquettes double face LNEX 1210.., diamètre de coupe 1.250" avec angle d'attaque de 90° et queue Weldon de 1.250" selon DIN 1835B, longueur utile de 1.654" et longueur totale de 4.331", arrosage par l'intérieur pour le surfaçage, le fraisage d'épaulement peu profond, le fraisage d'épaulement profond, le fraisage en plongée et le fraisage de rainures peu profondes avec une profondeur de coupe maximale de 0.394"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125A3R165W125-ISLN12X-C
Product Number8186013
Product FamilyISLN12X

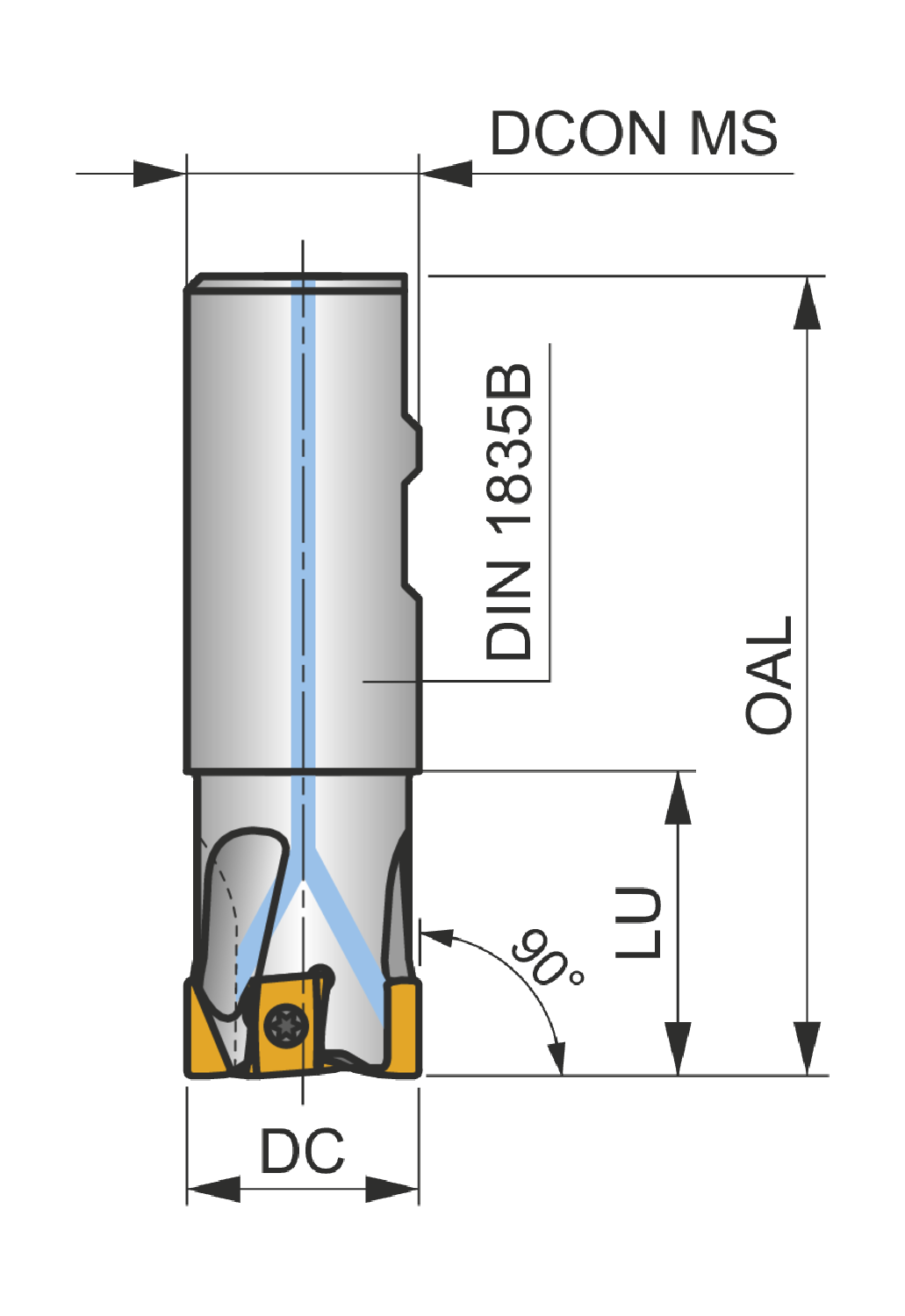

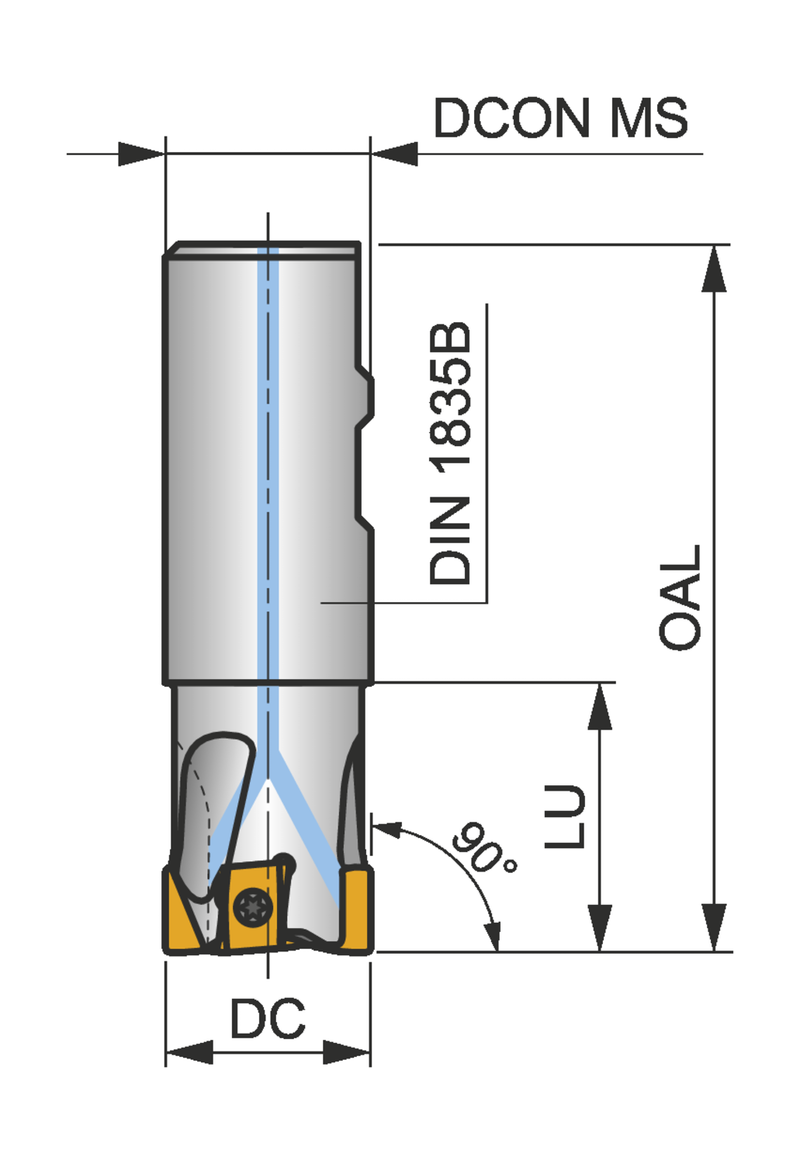

Dimensions
Cutting Diameter — in (DC)1.25"
Cutting Diameter — mm (DC)30.6 mm
Overall Length — in (OAL)4.331"
Overall Length — mm (OAL)106.1 mm
Usable Length — in (LU)1.654"
Usable Length — mm (LU)40.5 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)30.6 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSLN12X
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8186013
EAN3603603958302
File Type Download
125A3R165W125-ISLN12X-C — 3D Model STP Download
125A3R165W125-ISLN12X-C — 2D Model DXF Download
125A3R165W125-ISLN12X-C — Line Drawing PDF Download
