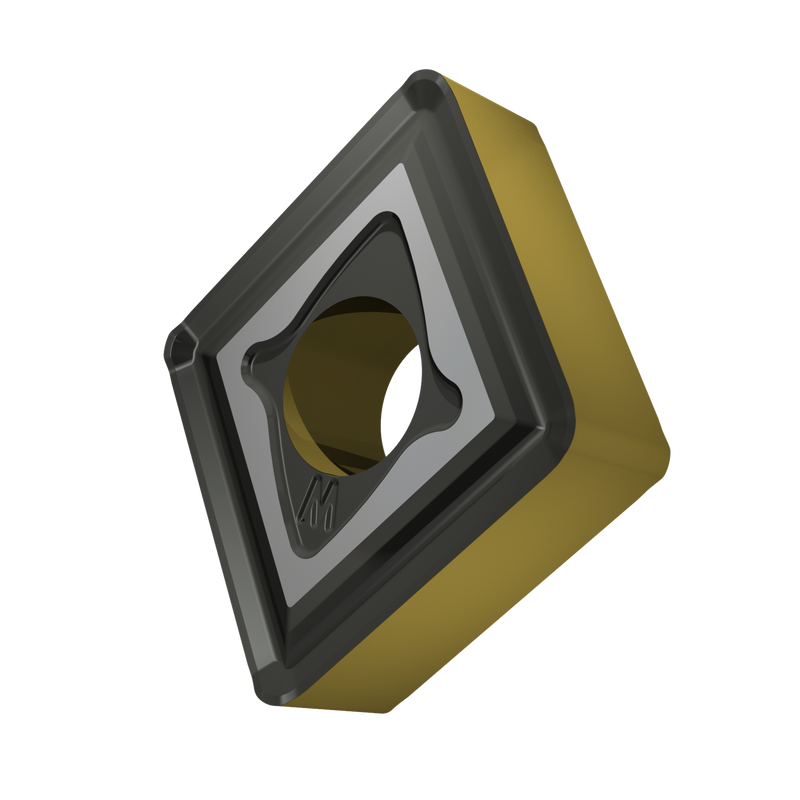

CNMG 433W-MR:T9415
CNMG 433W-MR:T9415

CNMG 433W-MR:T9415

UGC DOR8194906
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.61 CAD - $16.61 CAD
$16.61 CAD
$16.61 CAD - $16.61 CAD
$16.61 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 1/2", épaisseur 3/16", rayon de bec 3/64", précision d'indexage selon la classe de tolérance ISO M, brise-copeaux MR avec conception de bord WIPER, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage moyen à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 433W-MR:T9415
Product Name (ISO)CNMG 120412W-MR:T9415
GradeT9415
Chipbreaker (CBMD)Ouest-MR
Product Number8194906
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number8194906
EAN3603603971097
File Type Download
CNMG 433W-MR:T9415 — Line Drawing PDF Download
