SDET 13T3AFFN-FA:HF7
SDET 13T3AFFN-FA:HF7

SDET 13T3AFFN-FA:HF7

UGC DOR8202686
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.90 CAD - $24.90 CAD
$24.90 CAD
$24.90 CAD - $24.90 CAD
$24.90 CAD

Vendu en lots de : 10

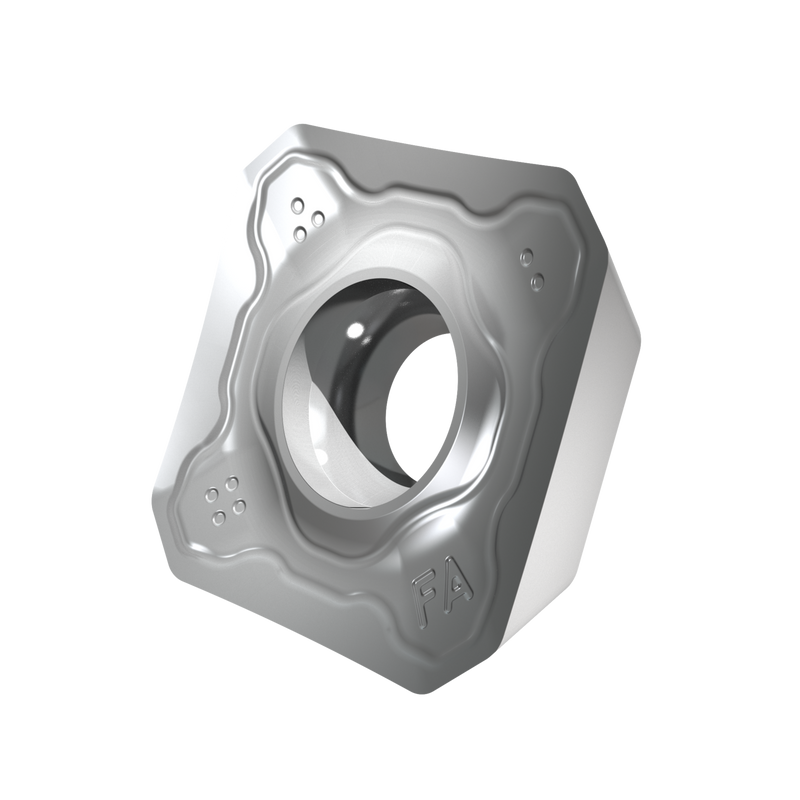

Plaquette de fraisage simple face SDET 13T3 avec brise-copeaux, carrée pour une profondeur de coupe maximale de 6,4 mm, avec une précision de positionnement selon la classe de tolérance ISO-E et une géométrie FA avec arêtes de coupe vives, en carbure WC-Co micrograin non revêtu HF7 dans la gamme de nuances ISO N10-N25 pour l'usinage des métaux non ferreux avec des fraises à surfacer SSD13F

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SDET 13T3AFFN-FA:HF7
Chipbreaker (CBMD)FA
Product Number8202686
Product FamilySDET 13
Insert Geometry
Insert DesignESDT 13
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.527"
Inscribed Circle Dia. — mm (IC)13.38 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Tool Information
Reference Numbers
EDP Number8202686
EAN3603603977075
Material Group Suitability
N — Non-Ferrous Metals Usage principal
File Type Download

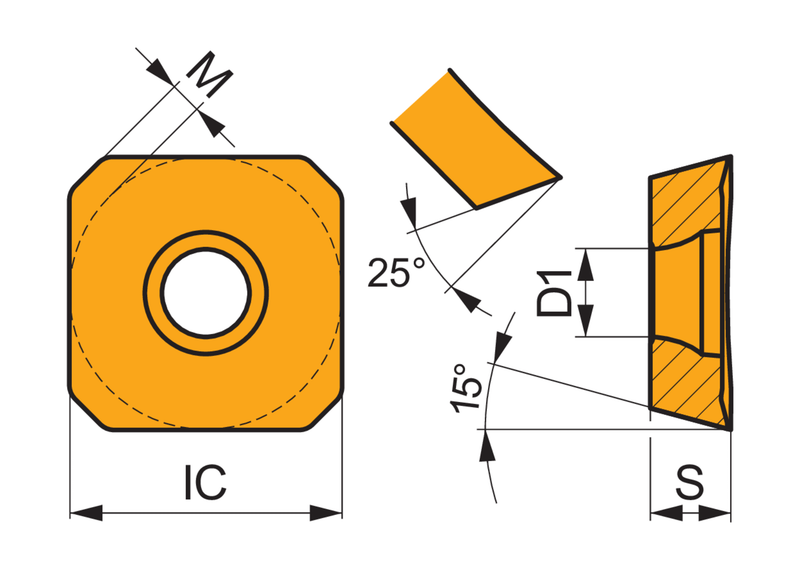

SDET 13T3AFFN-FA:HF7 — Line Drawing PDF Download
