800C16R-IS45SD13F-C
800C16R-IS45SD13F-C
800C16R-IS45SD13F-C

800C16R-IS45SD13F-C

UGC DOR8202811
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,141.00 CAD - $2,141.00 CAD
$2,141.00 CAD
$2,141.00 CAD - $2,141.00 CAD
$2,141.00 CAD

Vendu en lots de : 1

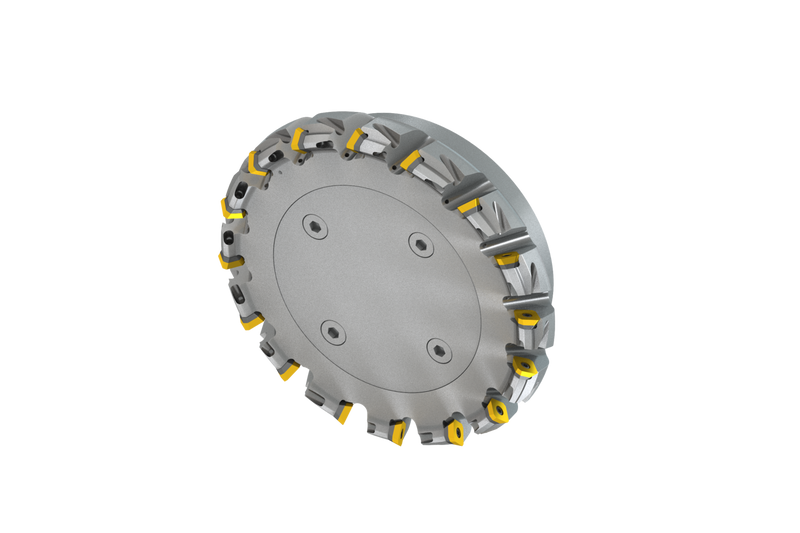

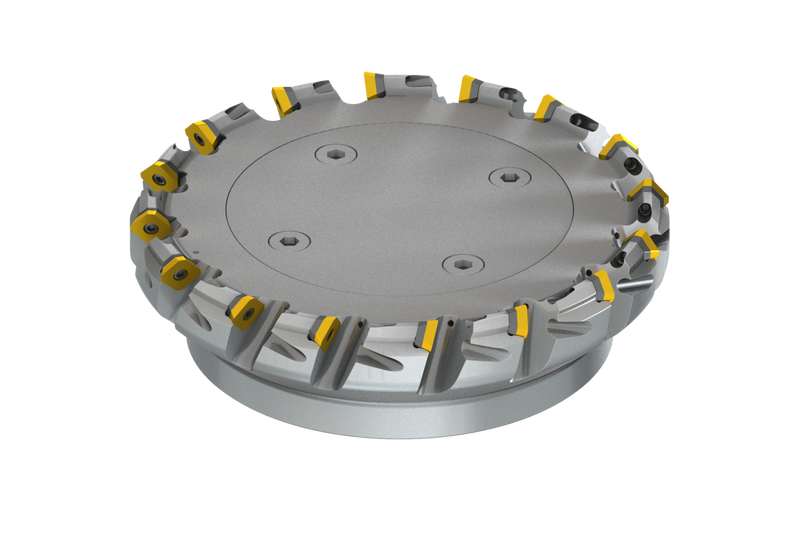

Fraise à surfacer avec géométrie positive/négative qui utilise 16 plaquettes simple face SDET 13T3.., SDMT 13T3.. ou XDET 13T3.., diamètre de coupe de 8.000" à 8.504" maximum avec un angle d'attaque de 45° et un alésage de connexion de 2.500" selon DIN 8030-C, 2.480" fonctionnel et, arrosage interne et pas différentiel pour le surfaçage et le chanfreinage avec une profondeur de coupe maximale de 0.252"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)800C16R-IS45SD13F-C
Product Number8202811
Product FamilyISSD13F

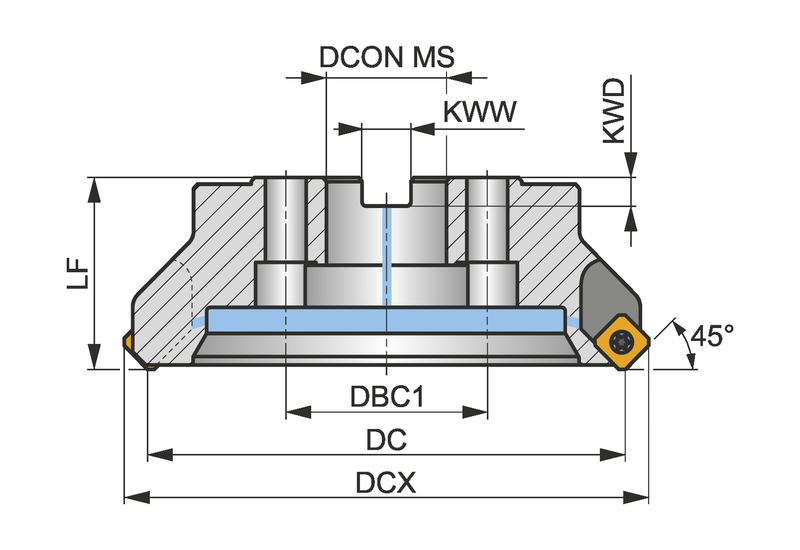

Dimensions
Cutting Diameter — in (DC)8.0"
Cutting Diameter — mm (DC)196.0 mm
Functional Length — in (LF)2.48"
Functional Length — mm (LF)60.8 mm
Connection Dia. — in (DCON)2.5"
Connection Dia. — mm (DCON)61.3 mm
Number of Flutes (NOF)16
Tool Information
Tool DesignSSD13F
ShankFraise à surfacer DIN 8030 C
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8202811
EAN3603603977464
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
800C16R-IS45SD13F-C — 3D Model STP Download
800C16R-IS45SD13F-C — 2D Model DXF Download
800C16R-IS45SD13F-C — Line Drawing PDF Download
