G7049/32X1/8
G7049/32X1/8

G7049/32X1/8

UGC DOR8203223
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.13 CAD - $31.13 CAD
$31.13 CAD
$31.13 CAD - $31.13 CAD
$31.13 CAD

Vendu en lots de : 1

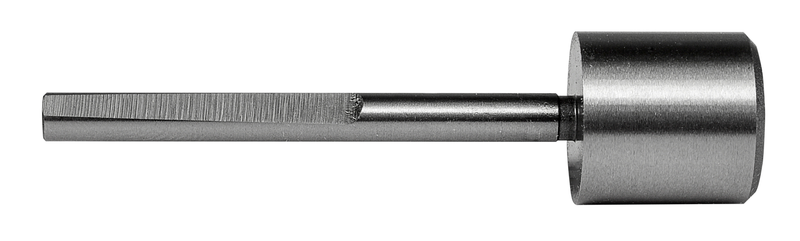

Pointe pilote interchangeable d'un diamètre de 9/32" et d'une longueur totale de 1.5/8", avec une longueur de guide de 5/16" et une queue droite de 1/8" de diamètre avec méplat pour montage sur corps de fraise à chambrer, conforme à la norme ANSI, en acier rapide avec finition brillante standard pour applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G7049/32X1/8
GradeLumineux
Product Number8203223
Product FamilyG704

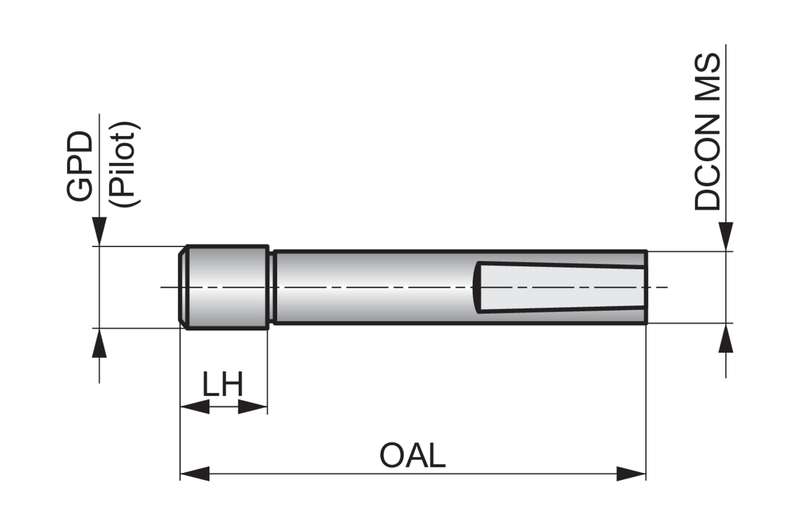

Dimensions
Overall Length — in (OAL)1.625"
Overall Length — mm (OAL)41.28 mm
Connection Dia. — mm (DCON)3.18 mm
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number8203223
EAN3603607031810
File Type Download
G7049/32X1/8 — Line Drawing PDF Download
