G7045/8X5/16
G7045/8X5/16

G7045/8X5/16

UGC DOR8203266
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$57.61 CAD - $57.61 CAD
$57.61 CAD
$57.61 CAD - $57.61 CAD
$57.61 CAD

Vendu en lots de : 1

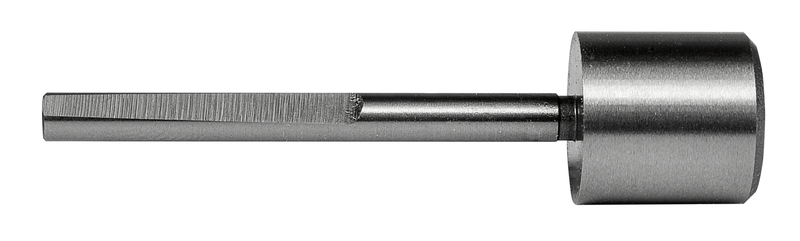

Pilote interchangeable avec un diamètre pilote de 5/8" et une longueur totale de 2.1/4", une longueur de guide pilote de 5/8" et une queue droite de 5/16" de diamètre avec méplat pour le montage sur les corps d'alésoirs, selon la norme ANSI, en HSS avec finition brillante standard pour applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G7045/8X5/16
GradeLumineux
Product Number8203266
Product FamilyG704

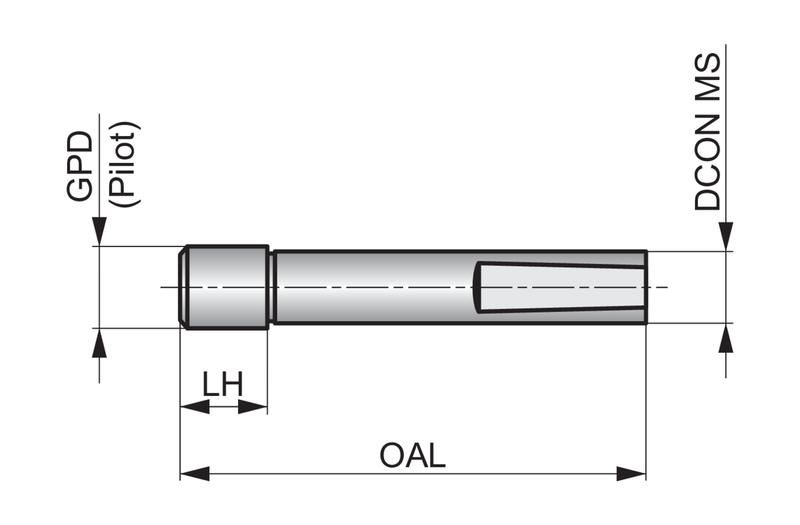

Dimensions
Overall Length — in (OAL)2.25"
Overall Length — mm (OAL)57.15 mm
Connection Dia. — mm (DCON)7.94 mm
Tool Information
ShankTige cylindrique
StandardANSI
Reference Numbers
EDP Number8203266
EAN3603607032244
File Type Download
G7045/8X5/16 — Line Drawing PDF Download
