G70413/16X5/16
G70413/16X5/16

G70413/16X5/16

UGC DOR8203269
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$75.06 CAD - $75.06 CAD
$75.06 CAD
$75.06 CAD - $75.06 CAD
$75.06 CAD

Vendu en lots de : 1

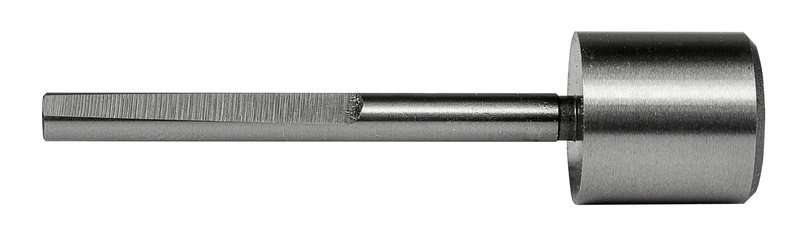

Pilote interchangeable avec un diamètre de pilote de 13/16" et une longueur totale de 2.1/2", une longueur de guide de pilote de 7/8" et une queue droite de 5/16" de diamètre avec méplat pour le montage sur les corps de contre-alésage, selon la norme ANSI, HSS avec finition brillante standard pour applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G70413/16X5/16
GradeLumineux
Product Number8203269
Product FamilyG704

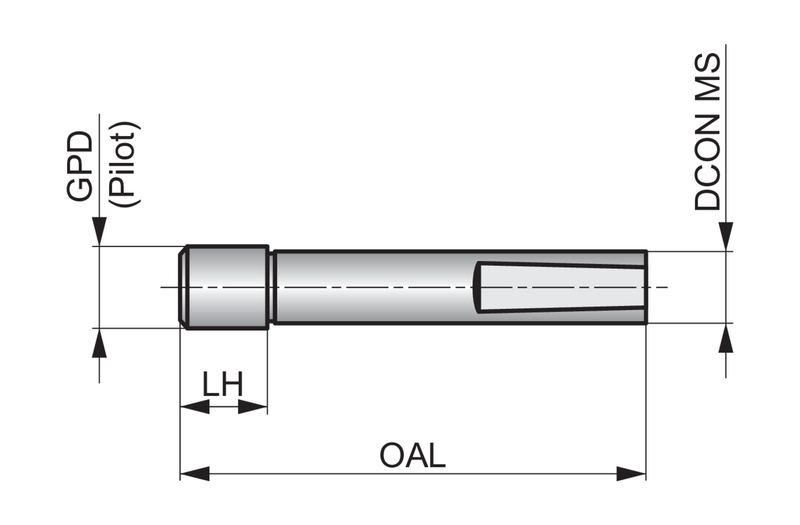

Dimensions
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — mm (DCON)7.94 mm
Tool Information
ShankTige cylindrique
StandardANSI
Reference Numbers
EDP Number8203269
EAN3603607032275
File Type Download
G70413/16X5/16 — Line Drawing PDF Download
