G70415/16X3/8
G70415/16X3/8

G70415/16X3/8

UGC DOR8203280
par Dormer Pramet
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$87.21 CAD - $87.21 CAD
$87.21 CAD
$87.21 CAD - $87.21 CAD
$87.21 CAD

Vendu en lots de : 1

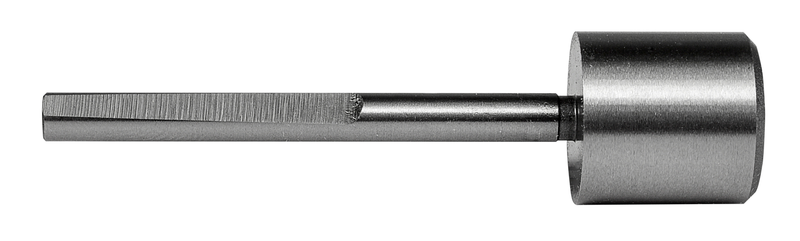

Tige pilote interchangeable avec un diamètre pilote de 15/16" et une longueur totale de 2.5/8" avec une longueur de guidage pilote de 1" et une tige droite de 3/8" de diamètre avec méplat pour le montage sur les corps de contre-alésage, selon la norme ANSI, HSS avec finition brillante standard pour applications générales

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G70415/16X3/8
GradeLumineux
Product Number8203280
Product FamilyG704

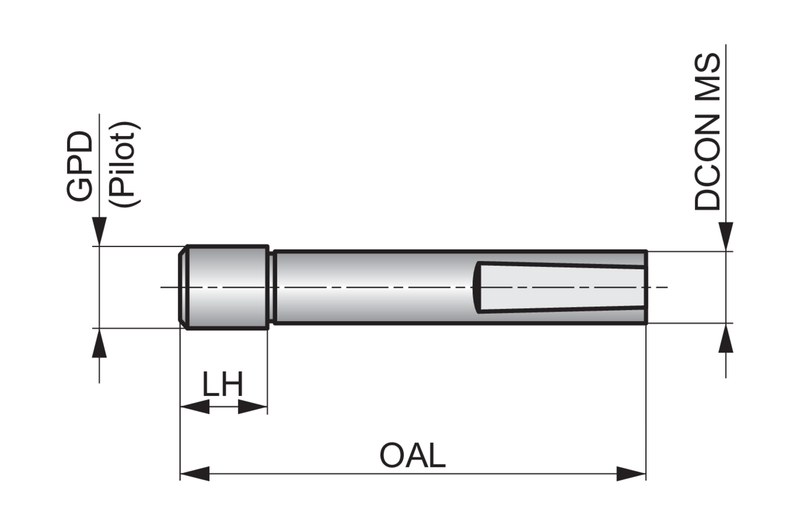

Dimensions
Overall Length — in (OAL)2.625"
Overall Length — mm (OAL)66.68 mm
Connection Dia. — mm (DCON)9.53 mm
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number8203280
EAN3603607032381
