CNMX 190740SN-RF:T9415
CNMX 190740SN-RF:T9415

CNMX 190740SN-RF:T9415

UGC DOR8239161
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$38.64 CAD - $38.64 CAD
$38.64 CAD
$38.64 CAD - $38.64 CAD
$38.64 CAD

Vendu en lots de : 10

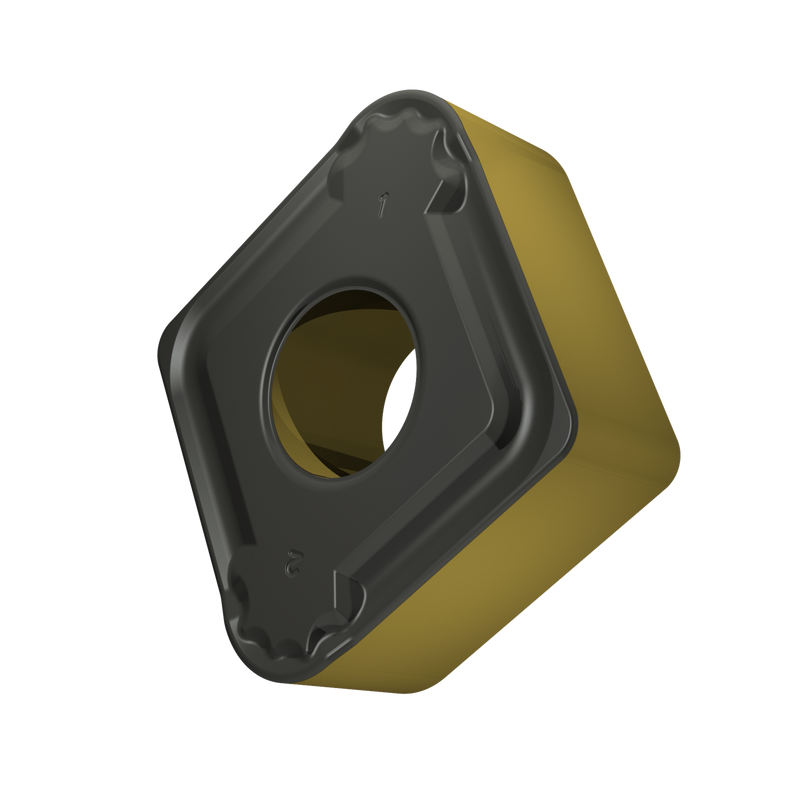

Plaquette négative à usage spécifique pour tournage, rhomboïde 80° avec diamètre de cercle inscrit de 19,05mm, épaisseur de 7,94mm, rayon de bec de 4mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux RF avec arêtes de coupe arrondies avec facette, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, dans la plage ISO P05 -P30, pour l'usinage lourd à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CNMX 190740SN-RF:T9415
GradeT9415
Chipbreaker (CBMD)RF
Product Number8239161
Product FamilyCNMX 19

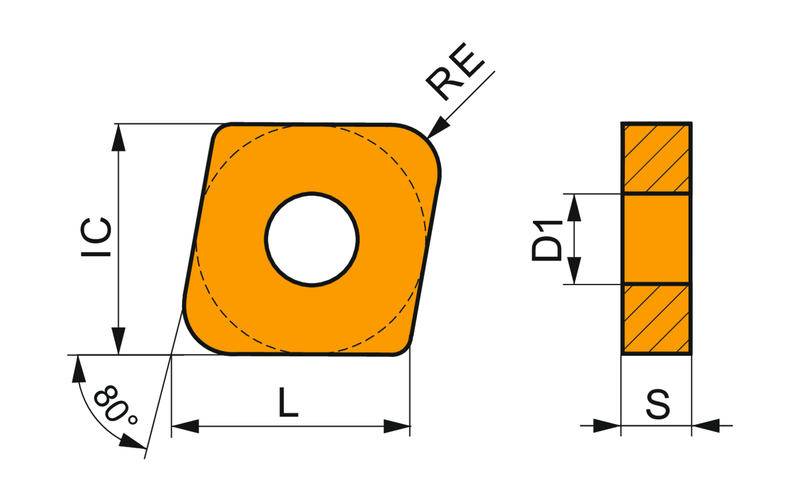

Insert Geometry
Insert DesignCNMX 19
Insert Shape Code (SC)C - rhombique 80° angle inclus
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Corner Radius — in (RE)0.157"
Corner Radius — mm (RE)4 mm
Tool Information
Reference Numbers
EDP Number8239161
EAN3603604012355
File Type Download
CNMX 190740SN-RF:T9415 — Line Drawing PDF Download
