RCMX 2507MO-RM2:T9415
RCMX 2507MO-RM2:T9415

RCMX 2507MO-RM2:T9415

UGC DOR8239169
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.43 CAD - $52.43 CAD
$52.43 CAD
$52.43 CAD - $52.43 CAD
$52.43 CAD

Vendu en lots de : 10

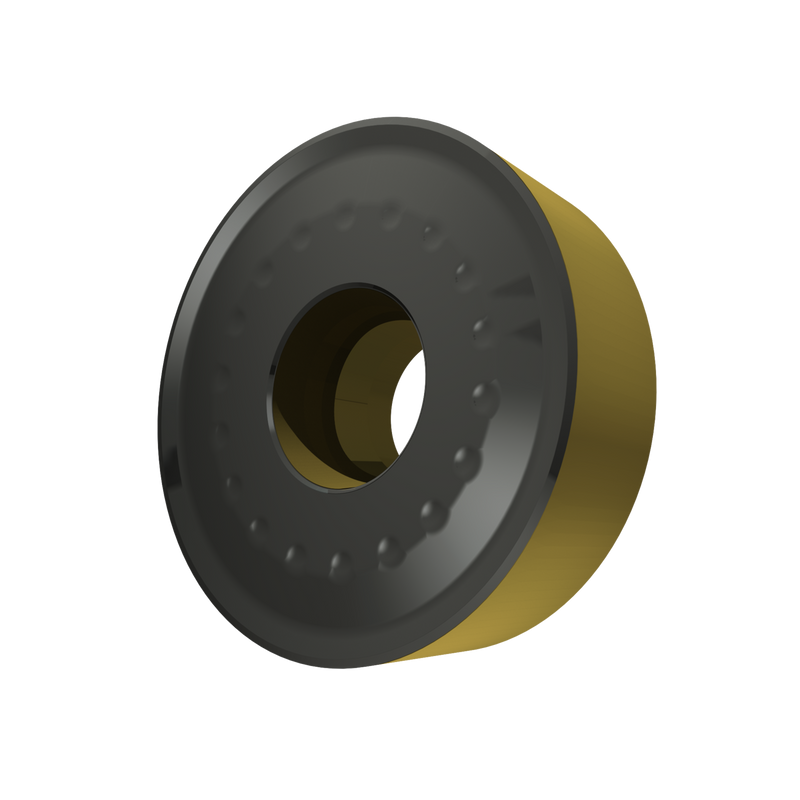

Plaquette positive de tournage, de conception spéciale, ronde avec dépouille de 7°, d'un diamètre de 25 mm, d'une épaisseur de 7,94 mm, avec une précision d'indexage selon la classe de tolérance ISO M, brise-copeaux RM2, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05-P30, pour l'usinage lourd à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMX 2507MO-RM2:T9415
GradeT9415
Chipbreaker (CBMD)RM2
Product Number8239169
Product FamilyRCMX
Insert Geometry
Insert DesignRCMX
Insert Shape Code (SC)R - tour
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Tool Information
Reference Numbers
EDP Number8239169
EAN3603604012430
File Type Download

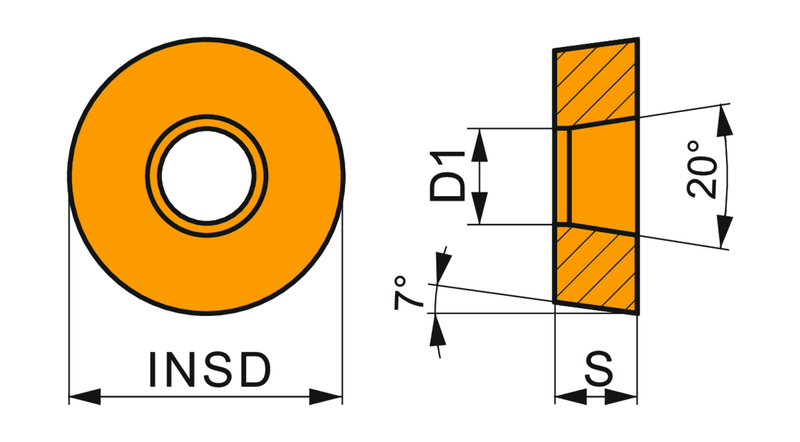

RCMX 2507MO-RM2:T9415 — Line Drawing PDF Download
