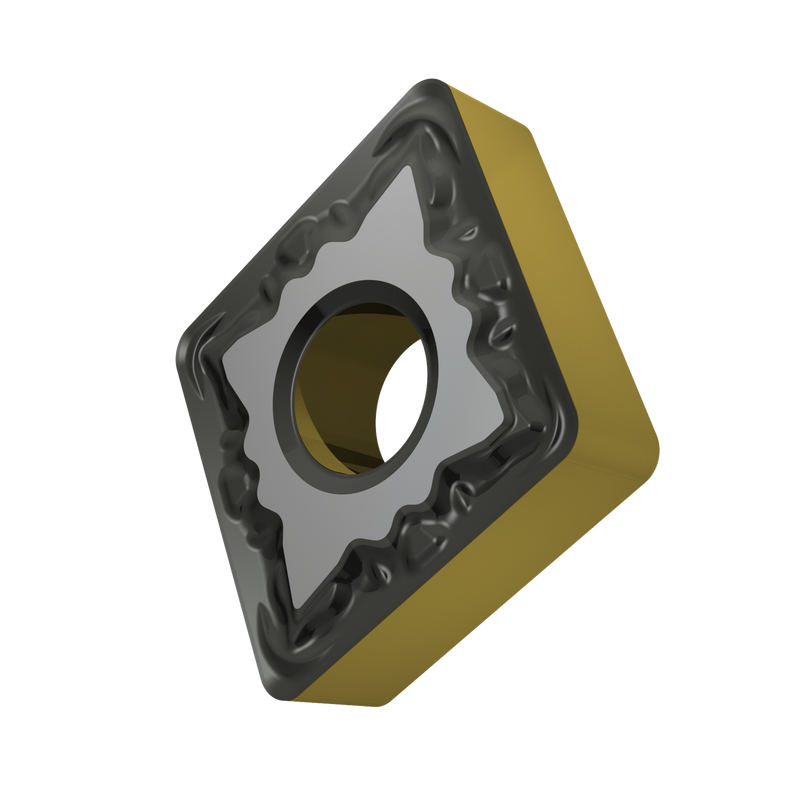

CNMG 322-FM:T9415
CNMG 322-FM:T9415

CNMG 322-FM:T9415

UGC DOR8244147
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.71 CAD - $9.71 CAD
$9.71 CAD
$9.71 CAD - $9.71 CAD
$9.71 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 80° avec cercle inscrit de 3/8", épaisseur de 1/8", rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux FM, en nuance T9415, un carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD dans la plage ISO P05 - P30, pour l'usinage de finition à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 322-FM:T9415
Product Name (ISO)CNMG 090308E-FM:T9415
GradeT9415
Chipbreaker (CBMD)FM
Product Number8244147
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle d'inclinaison de 80° pour le losange
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8244147
EAN3603604014205
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
CNMG 322-FM:T9415 — Line Drawing PDF Download
