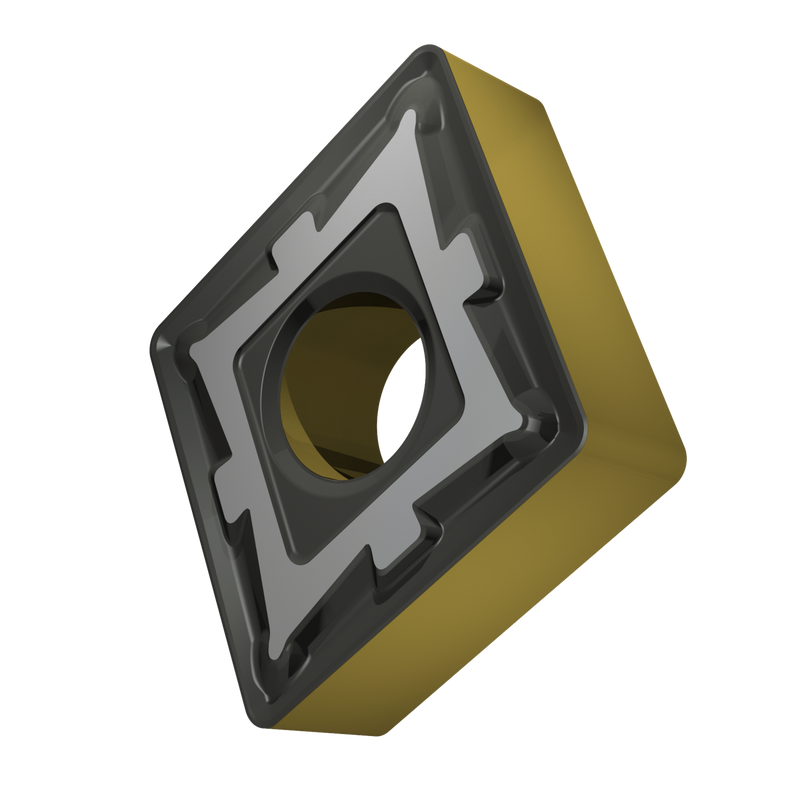

CNMG 542-M:T9415
CNMG 542-M:T9415

CNMG 542-M:T9415

UGC DOR8244246
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.43 CAD - $23.43 CAD
$23.43 CAD
$23.43 CAD - $23.43 CAD
$23.43 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 5/8", 1/4" d'épaisseur, rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux M, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage de l'acier de la finition à l'ébauche

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 542-M:T9415
Product Name (ISO)CNMG 160608E-M:T9415
GradeT9415
Chipbreaker (CBMD)M
Product Number8244246
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle de 80° inclus, rhomboédrique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8244246
EAN3603604014298
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
H — Hardened Materials Utilisation possible
File Type Download
CNMG 542-M:T9415 — Line Drawing PDF Download
