CNMG 642-RM:T9415
CNMG 642-RM:T9415

CNMG 642-RM:T9415

UGC DOR8244254
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.83 CAD - $31.83 CAD
$31.83 CAD
$31.83 CAD - $31.83 CAD
$31.83 CAD

Vendu en lots de : 10

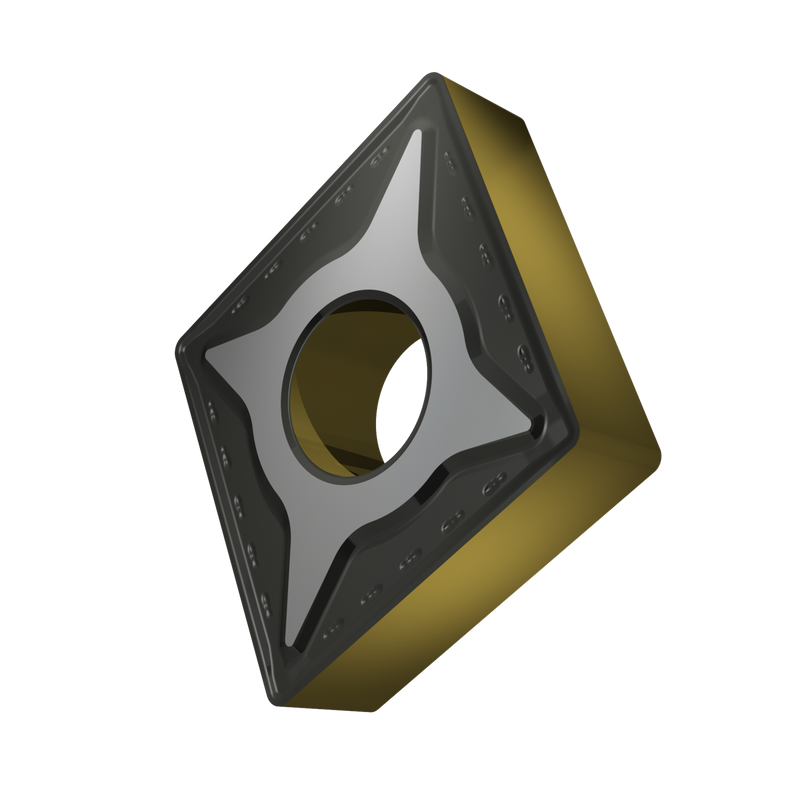

Plaquette négative double face, rhomboïde à 80° avec un diamètre de cercle inscrit de 3/4", une épaisseur de 1/4", un rayon de bec de 1/32" et une précision de positionnement selon la classe de tolérance ISO M, brise-copeaux RM, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, dans la plage ISO P05 - P30, pour l'usinage moyen à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 642-RM:T9415
Product Name (ISO)CNMG 190608E-RM:T9415
GradeT9415
Chipbreaker (CBMD)RM
Product Number8244254
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhomboïdal 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8244254
EAN3603604014373
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
CNMG 642-RM:T9415 — Line Drawing PDF Download
