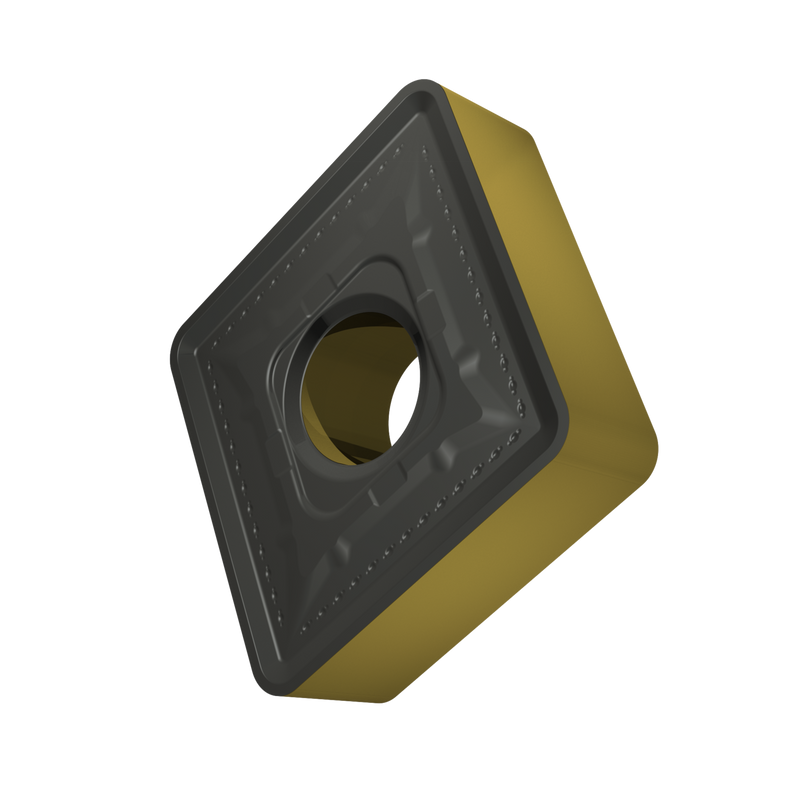

CNMM 866-HR2:T9415
CNMM 866-HR2:T9415

CNMM 866-HR2:T9415

UGC DOR8244261
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$65.14 CAD - $65.14 CAD
$65.14 CAD
$65.14 CAD - $65.14 CAD
$65.14 CAD

Vendu en lots de : 5

Plaquette négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 1", épaisseur de 3/8", rayon de bec de 3/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux HR2, en nuance T9415, un carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD dans la plage ISO P05 - P30, pour l'usinage lourd à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMM 866-HR2:T9415
Product Name (ISO)CNMM 250924-HR2:T9415
GradeT9415
Chipbreaker (CBMD)RH2
Product Number8244261
Product FamilyCNMM
Insert Geometry
Insert DesignCNMM
Insert Shape Code (SC)C - angle de 80° entre les côtés égaux
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Tool Information
Reference Numbers
EDP Number8244261
EAN3603604014441
File Type Download
CNMM 866-HR2:T9415 — Line Drawing PDF Download
