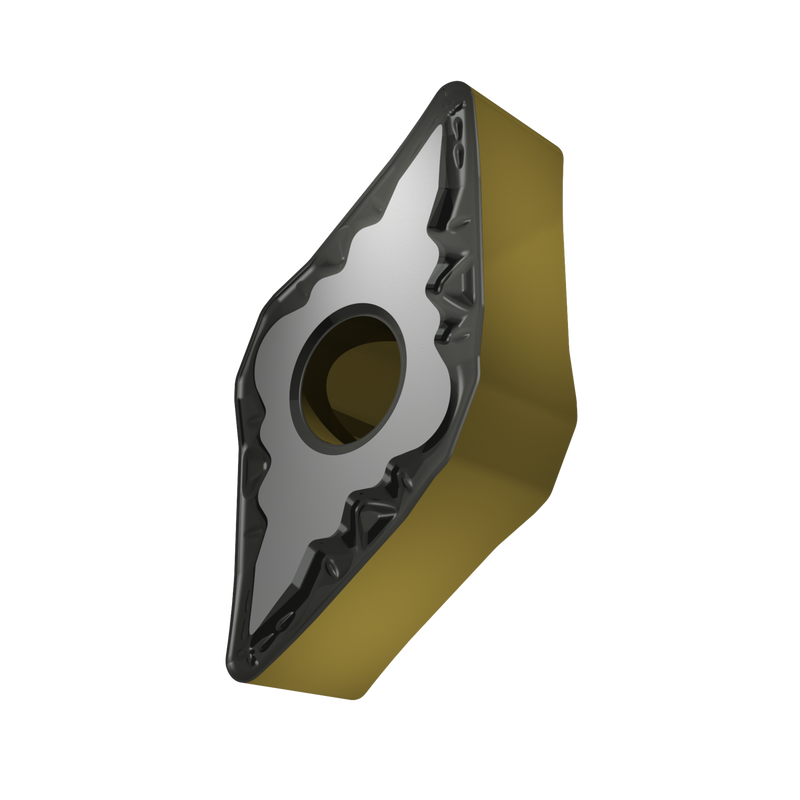

DNMG 443-FM:T9415
DNMG 443-FM:T9415

DNMG 443-FM:T9415

UGC DOR8244276
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.43 CAD - $23.43 CAD
$23.43 CAD
$23.43 CAD - $23.43 CAD
$23.43 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 55° avec diamètre du cercle inscrit de 1/2", épaisseur de 1/4", rayon de bec de 3/64" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage de finition à moyen d'aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)DNMG 443-FM:T9415
Product Name (ISO)DNMG 150612E-FM:T9415
GradeT9415
Chipbreaker (CBMD)FM
Product Number8244276
Product FamilyDNMG
Insert Geometry
Insert DesignDNMG
Insert Shape Code (SC)D - angle de 55° inclus rhomboïdal
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number8244276
EAN3603604014595
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
DNMG 443-FM:T9415 — Line Drawing PDF Download
