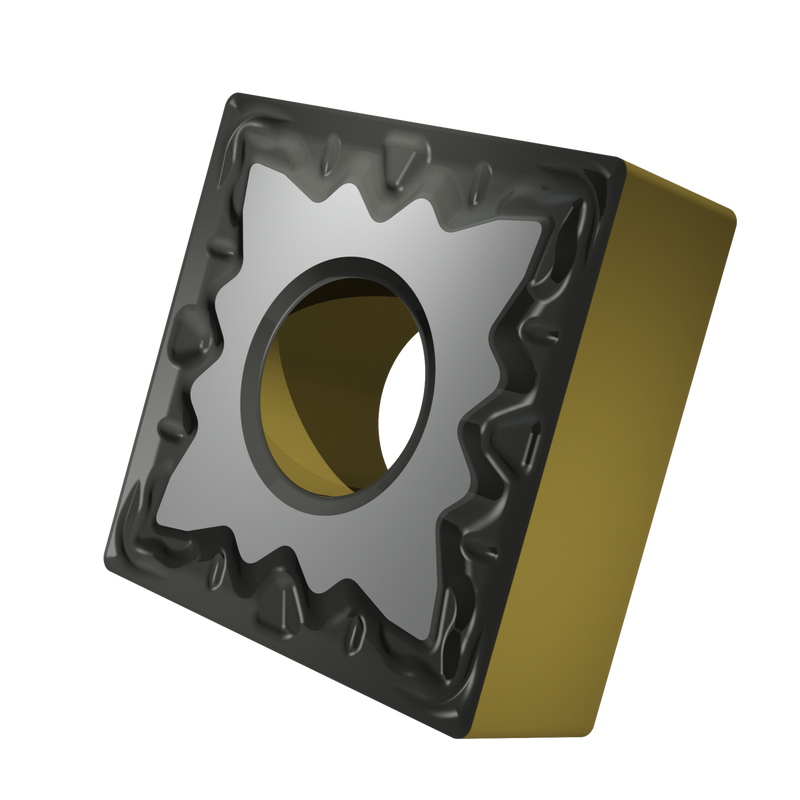

SNMG 431-FM:T9415
SNMG 431-FM:T9415

SNMG 431-FM:T9415

UGC DOR8244282
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.33 CAD - $14.33 CAD
$14.33 CAD
$14.33 CAD - $14.33 CAD
$14.33 CAD

Vendu en lots de : 10

Plaquette négative double face, carrée avec cercle inscrit de 1/2 po de diamètre, 3/16 po d'épaisseur, rayon de pointe de 1/64 po et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux FM, en nuance T9415, un carbure WC-Co à gradient de fonction à revêtement MT-CVD dans la gamme ISO P05 - P30, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 431-FM:T9415
Product Name (ISO)SNMG 120404E-FM:T9415
GradeT9415
Chipbreaker (CBMD)FM
Product Number8244282
Product FamilySNMG
Insert Geometry
Insert DesignSNMG
Insert Shape Code (SC)S - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8244282
EAN3603604014656
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
SNMG 431-FM:T9415 — Line Drawing PDF Download
