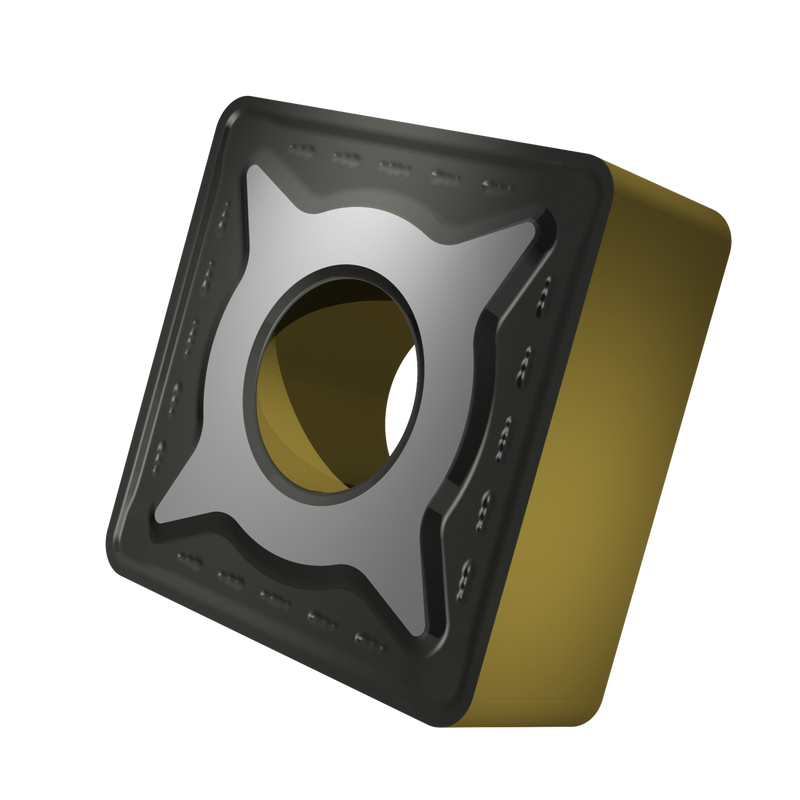

SNMG 543-RM:T9415
SNMG 543-RM:T9415

SNMG 543-RM:T9415

UGC DOR8244290
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.76 CAD - $22.76 CAD
$22.76 CAD
$22.76 CAD - $22.76 CAD
$22.76 CAD

Vendu en lots de : 10

Plaquette négative double face, carrée avec cercle inscrit de 5/8" de diamètre, 1/4" d'épaisseur, rayon de bec de 3/64" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux RM, en nuance T9415, un carbure WC-Co à gradient de fonction MT-CVD dans la gamme ISO P05 - P30, pour l'usinage moyen à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 543-RM:T9415
Product Name (ISO)SNMG 150612E-RM:T9415
GradeT9415
Chipbreaker (CBMD)RM
Product Number8244290
Product FamilySNMG
Insert Geometry
Insert DesignGMPS
Insert Shape Code (SC)S - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number8244290
EAN3603604014731
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
SNMG 543-RM:T9415 — Line Drawing PDF Download
