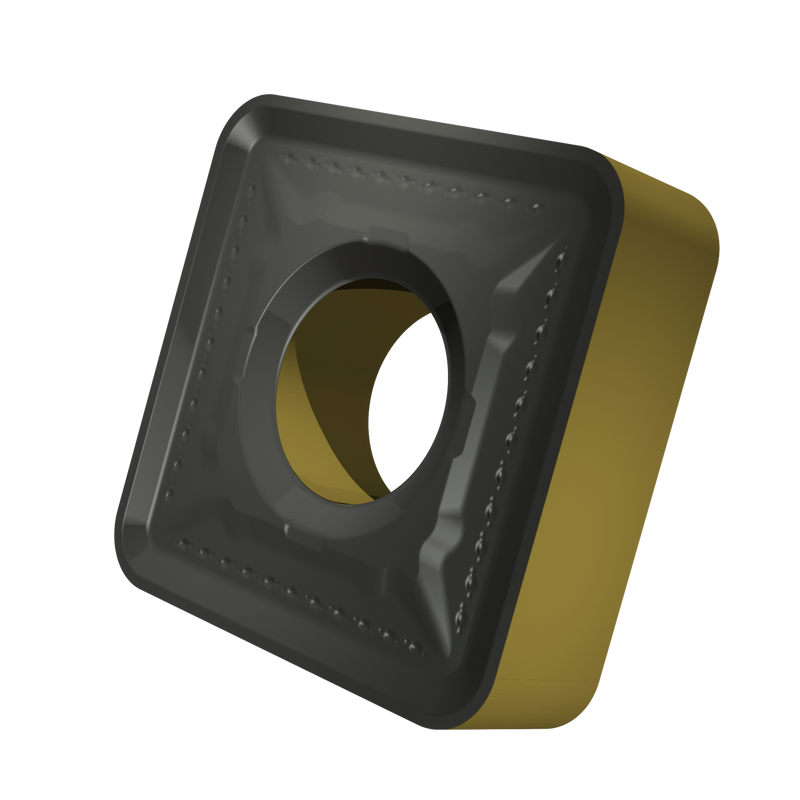

SNMM 646-RH2:T9415
SNMM 646-RH2:T9415

SNMM 646-RH2:T9415

UGC DOR8244294
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.76 CAD - $30.76 CAD
$30.76 CAD
$30.76 CAD - $30.76 CAD
$30.76 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, carrée, avec cercle inscrit de 3/4", 1/4" d'épaisseur, rayon de bec de 3/32" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux HR2, en nuance T9415, un carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD dans la gamme ISO P05 - P30, pour l'usinage lourd à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMM 646-RH2:T9415
Product Name (ISO)SNMM 190624-RH2:T9415
GradeT9415
Chipbreaker (CBMD)RH2
Product Number8244294
Product FamilySNMM
Insert Geometry
Insert DesignSMNM
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Tool Information
Reference Numbers
EDP Number8244294
EAN3603604014779
File Type Download
SNMM 646-RH2:T9415 — Line Drawing PDF Download
