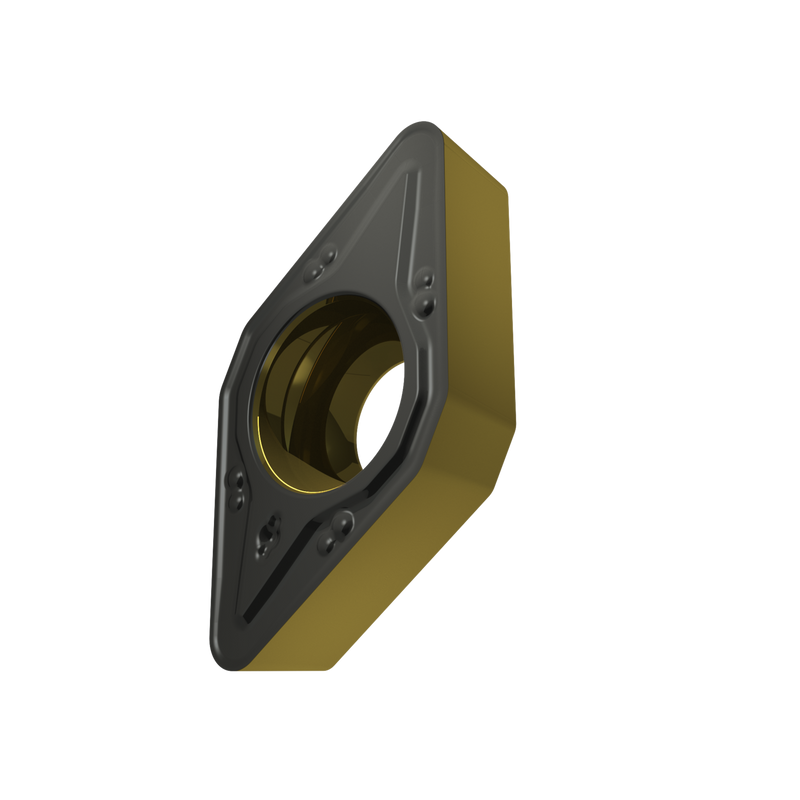

DCMT 32.53-RM:T9415
DCMT 32.53-RM:T9415

DCMT 32.53-RM:T9415

UGC DOR8244370
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.33 CAD - $16.33 CAD
$16.33 CAD
$16.33 CAD - $16.33 CAD
$16.33 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit de 3/8", épaisseur de 5/32", rayon de bec de 3/64" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux RM, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P05 - P30, pour l'usinage fin à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMT 32.53-RM:T9415
Product Name (ISO)DCMT 11T312E-RM:T9415
GradeT9415
Chipbreaker (CBMD)RM
Product Number8244370
Product FamilyDCMT
Insert Geometry
Insert DesignGDMC
Insert Shape Code (SC)D - angle de 55° inclus rhomboïdal
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number8244370
EAN3603604017336
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
H — Hardened Materials Usage possible
File Type Download
DCMT 32.53-RM:T9415 — Line Drawing PDF Download
