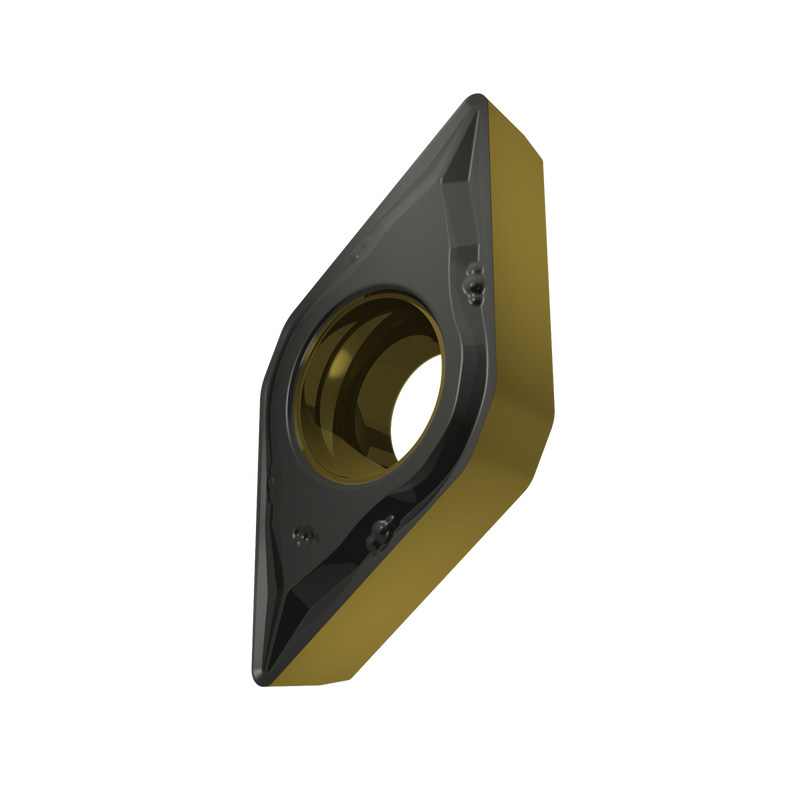

DCMT 21.51-FM:T9415
DCMT 21.51-FM:T9415

DCMT 21.51-FM:T9415

UGC DOR8244372
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.07 CAD - $12.07 CAD
$12.07 CAD
$12.07 CAD - $12.07 CAD
$12.07 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit de 1/4", épaisseur 3/32", rayon de bec de 1/64" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux FM, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMT 21.51-FM:T9415
Product Name (ISO)DCMT 070204E-FM:T9415
GradeT9415
Chipbreaker (CBMD)FM
Product Number8244372
Product FamilyGDCT
Insert Geometry
Insert DesignMRCD
Insert Shape Code (SC)D - angle inclus de 55° rhombique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8244372
EAN3603604017350
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
DCMT 21.51-FM:T9415 — Line Drawing PDF Download
