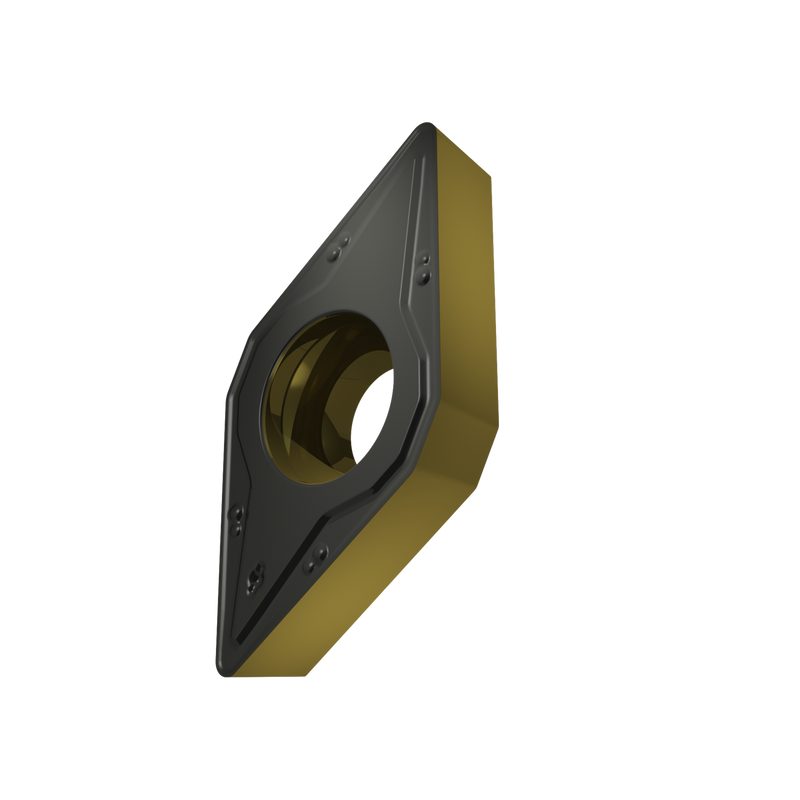

DCMT 432-RM:T9415
DCMT 432-RM:T9415

DCMT 432-RM:T9415

UGC DOR8244373
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.29 CAD - $23.29 CAD
$23.29 CAD
$23.29 CAD - $23.29 CAD
$23.29 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit de 1/2", épaisseur 3/16", rayon de bec 1/32" et précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux RM, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage fin à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMT 432-RM:T9415
Product Name (ISO)DCMT 150408E-RM:T9415
GradeT9415
Chipbreaker (CBMD)RM
Product Number8244373
Product FamilyDCMT
Insert Geometry
Insert DesignDCMT
Insert Shape Code (SC)D - angle aigu de 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8244373
EAN3603604017367
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
H — Hardened Materials Utilisation possible
File Type Download
DCMT 432-RM:T9415 — Line Drawing PDF Download
