RCMT 1204MOE-FM:T9415
RCMT 1204MOE-FM:T9415

RCMT 1204MOE-FM:T9415

UGC DOR8244375
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.97 CAD - $17.97 CAD
$17.97 CAD
$17.97 CAD - $17.97 CAD
$17.97 CAD

Vendu en lots de : 10

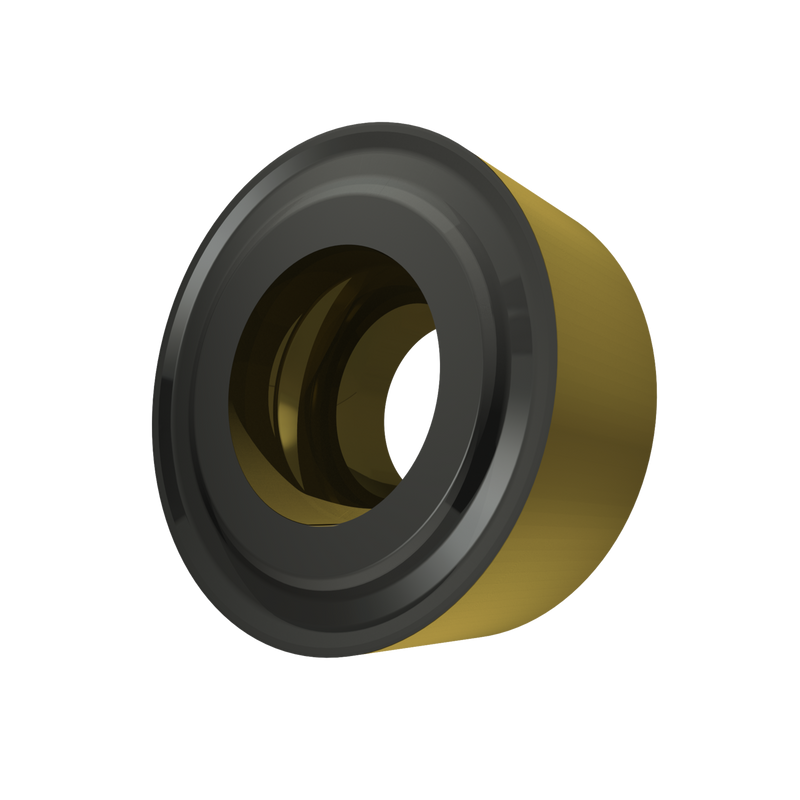

Plaquette positive simple face de tournage, ronde avec un angle de dépouille de 7°, un diamètre de 12 mm, 4,76 mm d'épaisseur, précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM avec arêtes de coupe arrondies, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P05 -P30, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 1204MOE-FM:T9415
GradeT9415
Chipbreaker (CBMD)FM
Product Number8244375
Product FamilyCMTR
Insert Geometry
Insert DesignCRFM
Insert Shape Code (SC)R - tour
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Tool Information
Reference Numbers
EDP Number8244375
EAN3603604017381
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
RCMT 1204MOE-FM:T9415 — Line Drawing PDF Download
