RCMT 1204MOE-UR:T9415
RCMT 1204MOE-UR:T9415

RCMT 1204MOE-UR:T9415

UGC DOR8244376
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.07 CAD - $15.07 CAD
$15.07 CAD
$15.07 CAD - $15.07 CAD
$15.07 CAD

Vendu en lots de : 10

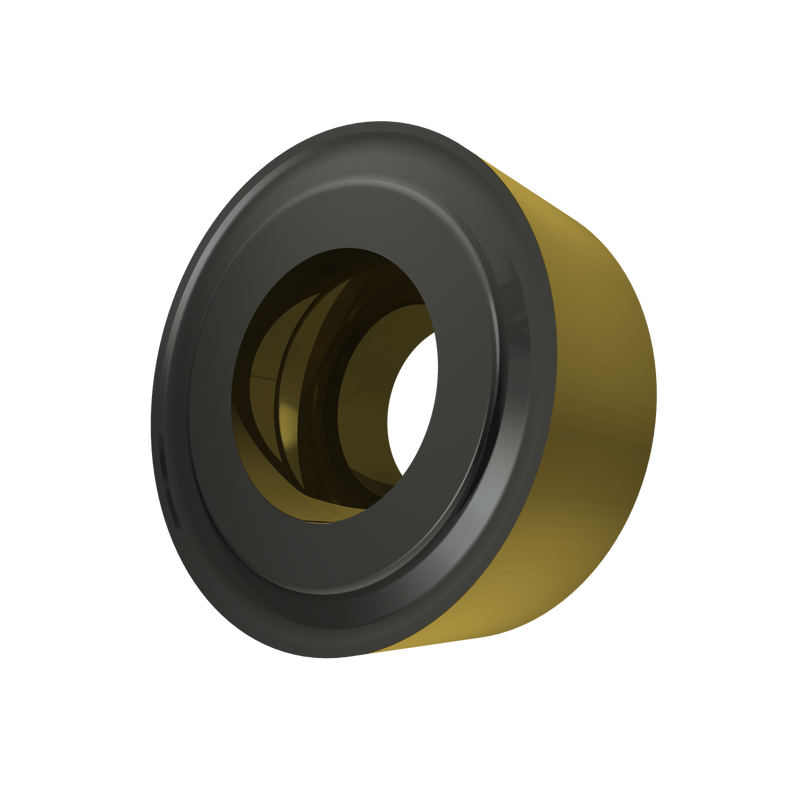

Plaquette positive simple face, ronde avec dépouille 7°, diamètre de 12 mm, 4,76 mm d'épaisseur, précision d'indexation selon classe de tolérance ISO-M, brise-copeaux UR avec arêtes de coupe arrondies, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 -P30, pour l'usinage fin à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 1204MOE-UR:T9415
GradeT9415
Chipbreaker (CBMD)VOUS
Product Number8244376
Product FamilyCRMT
Insert Geometry
Insert DesignRCMT
Insert Shape Code (SC)R - tour
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Tool Information
Reference Numbers
EDP Number8244376
EAN3603604017398
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download

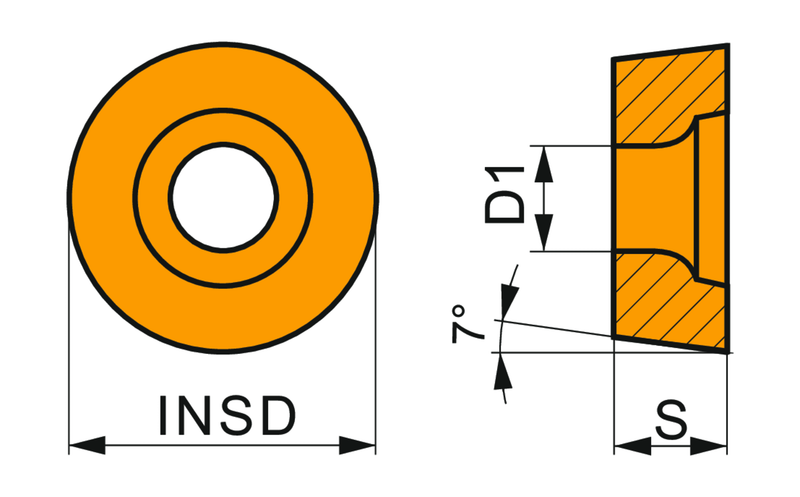

RCMT 1204MOE-UR:T9415 — Line Drawing PDF Download
