TCMT 32.52-RM:T9415
TCMT 32.52-RM:T9415

TCMT 32.52-RM:T9415

UGC DOR8244377
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.93 CAD - $14.93 CAD
$14.93 CAD
$14.93 CAD - $14.93 CAD
$14.93 CAD

Vendu en lots de : 10

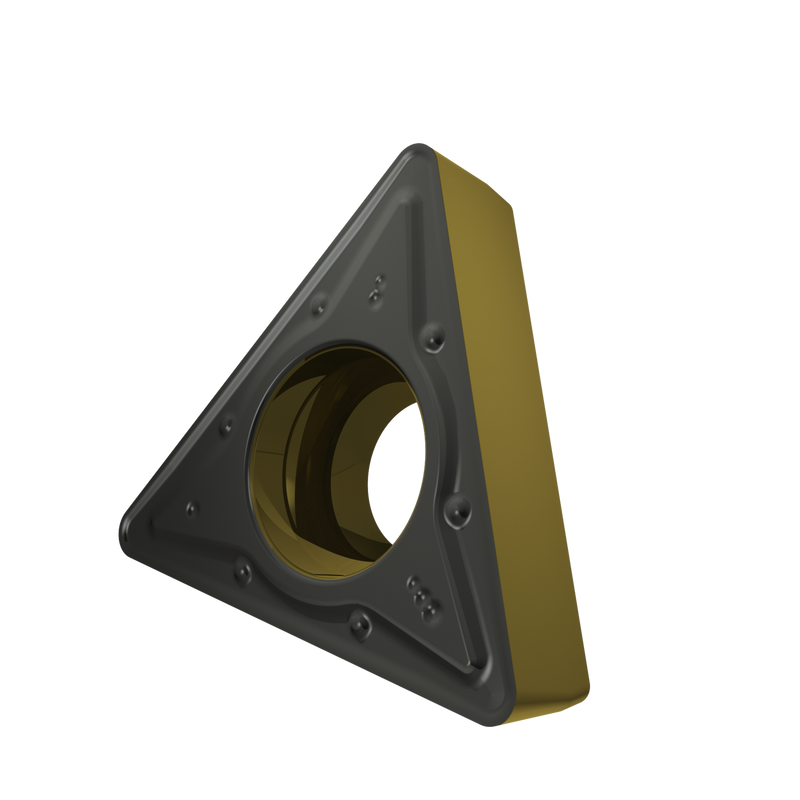

Plaquette de tournage positive simple face, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 3/8", épaisseur de 5/32", rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux RM, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage léger à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)TCMT 32.52-RM:T9415
Product Name (ISO)TCMT 16T308E-RM:T9415
GradeT9415
Chipbreaker (CBMD)RM
Product Number8244377
Product FamilyCMCT
Insert Geometry
Insert DesignTCMC
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8244377
EAN3603604017404
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
H — Hardened Materials Utilisation possible
File Type Download

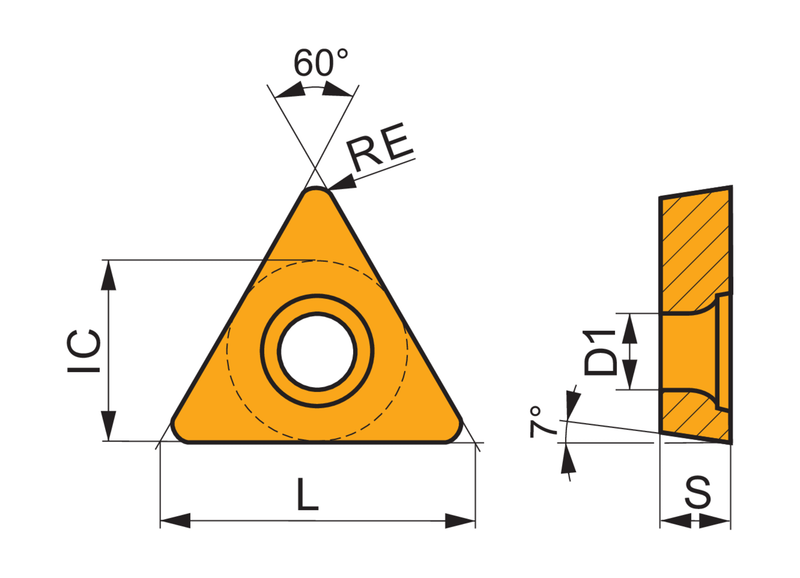

TCMT 32.52-RM:T9415 — Line Drawing PDF Download
