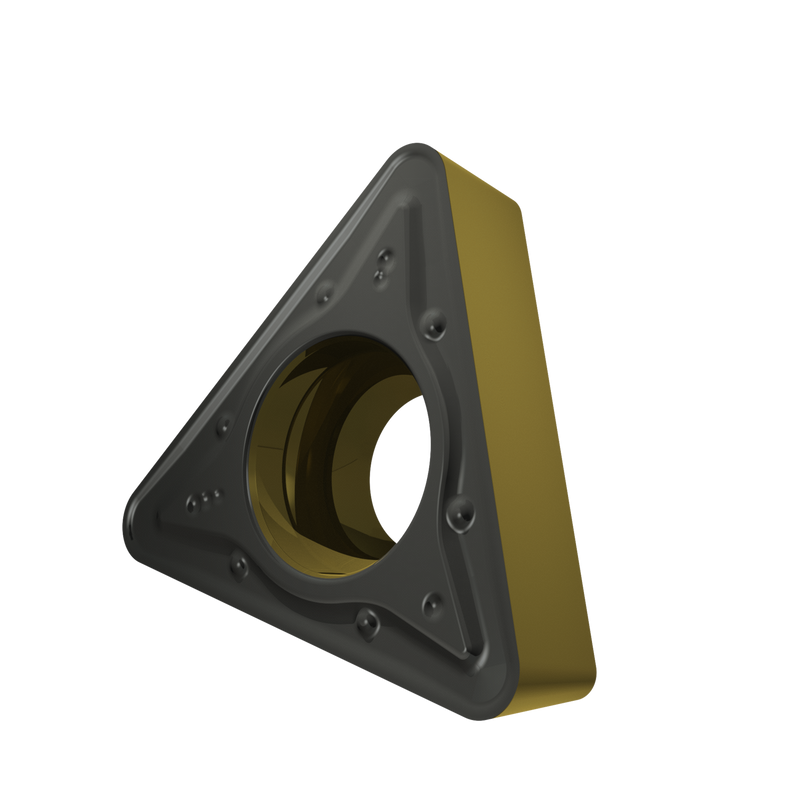

TCMT 32.53-RM:T9415
TCMT 32.53-RM:T9415

TCMT 32.53-RM:T9415

UGC DOR8244378
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.93 CAD - $14.93 CAD
$14.93 CAD
$14.93 CAD - $14.93 CAD
$14.93 CAD

Vendu en lots de : 10

Plaquette positive simple face pour le tournage, triangulaire avec un angle de dépouille de 7°, diamètre du cercle inscrit de 3/8", épaisseur de 5/32", rayon de bec de 3/64" et précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux RM, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage fin à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)TCMT 32.53-RM:T9415
Product Name (ISO)TCMT 16T312E-RM:T9415
GradeT9415
Chipbreaker (CBMD)RM
Product Number8244378
Product FamilyTCMT
Insert Geometry
Insert DesignTCMT
Insert Shape Code (SC)T - angulaire, angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Tool Information
Reference Numbers
EDP Number8244378
EAN3603604017411
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
H — Hardened Materials Utilisation possible
File Type Download
TCMT 32.53-RM:T9415 — Line Drawing PDF Download
