TCMT 21.52-FF2:T9415
TCMT 21.52-FF2:T9415

TCMT 21.52-FF2:T9415

UGC DOR8244381
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.79 CAD - $11.79 CAD
$11.79 CAD
$11.79 CAD - $11.79 CAD
$11.79 CAD

Vendu en lots de : 10

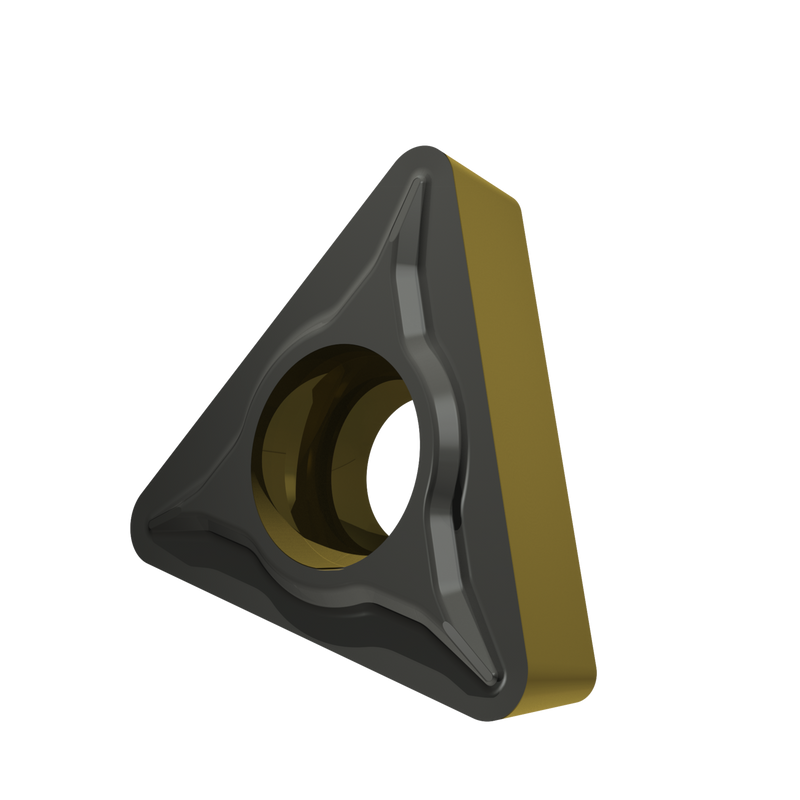

Plaquette de tournage positive simple face, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 1/4", épaisseur de 3/32", rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux FF2, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)TCMT 21.52-FF2:T9415
Product Name (ISO)TCMT 110208E-FF2:T9415
GradeT9415
Chipbreaker (CBMD)FF2
Product Number8244381
Product FamilyTCMT
Insert Geometry
Insert DesignTCMT
Insert Shape Code (SC)T - triangulaire 60° angle inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8244381
EAN3603604017442
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download

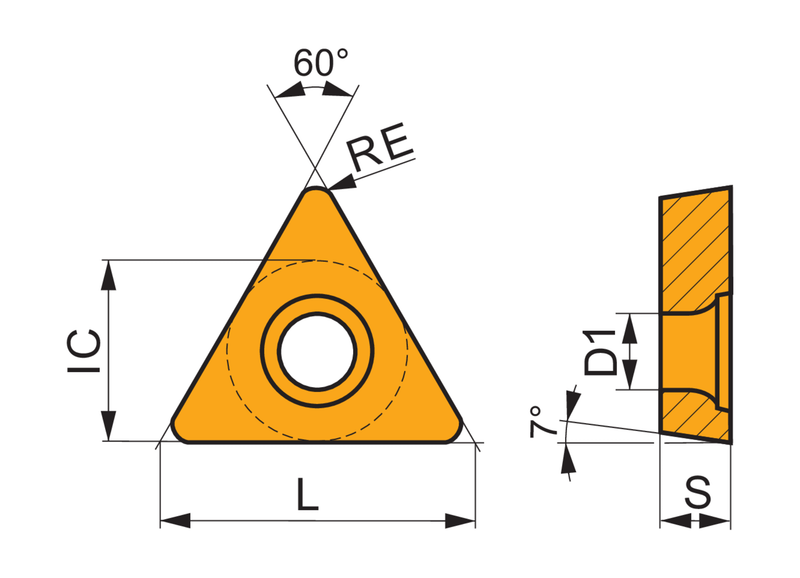

TCMT 21.52-FF2:T9415 — Line Drawing PDF Download
