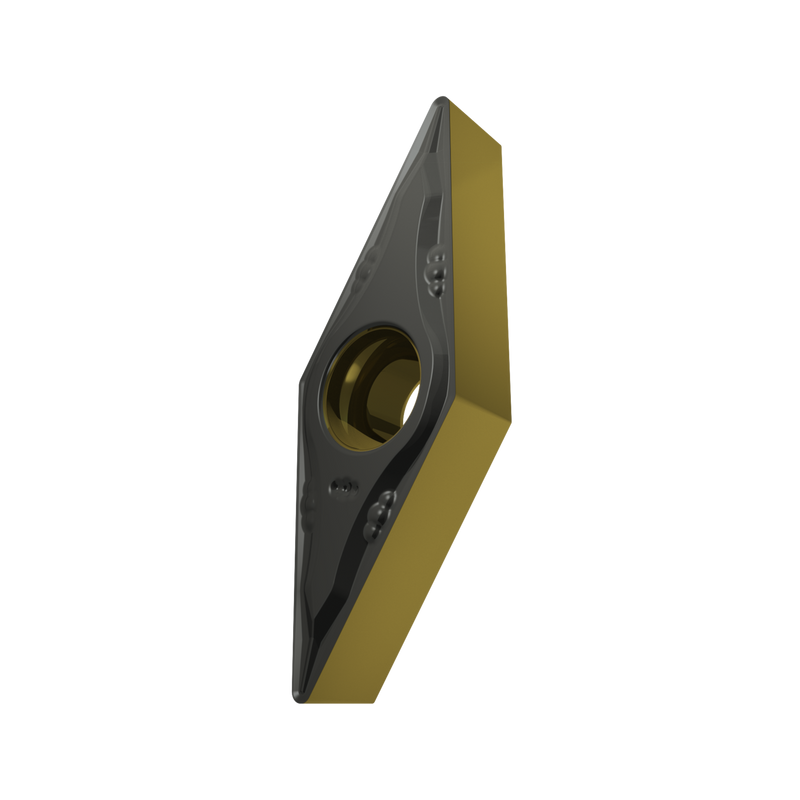

VBMT 221-FM:T9415
VBMT 221-FM:T9415

VBMT 221-FM:T9415

UGC DOR8244383
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.07 CAD - $22.07 CAD
$22.07 CAD
$22.07 CAD - $22.07 CAD
$22.07 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 35° avec dépouille 5°, diamètre du cercle inscrit 1/4", épaisseur 1/8", rayon de bec 1/64" et précision d'indexage selon la classe de tolérance ISO M, brise-copeaux FM, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, de gamme ISO P05 - P30, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)VBMT 221-FM:T9415
Product Name (ISO)VBMT 110304E-FM:T9415
GradeT9415
Chipbreaker (CBMD)FM
Product Number8244383
Product FamilyVBMT
Insert Geometry
Insert DesignVBMT
Insert Shape Code (SC)V - angle de 35° inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8244383
EAN3603604017466
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
VBMT 221-FM:T9415 — 3D Model STP Download
VBMT 221-FM:T9415 — Line Drawing PDF Download
