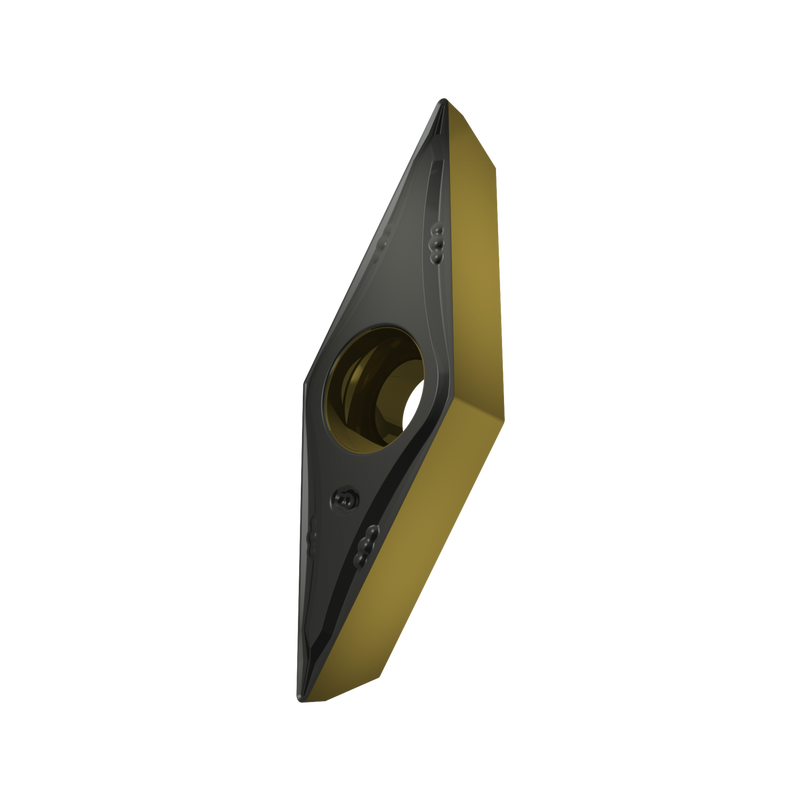

VCMT 331-FM:T9415
VCMT 331-FM:T9415

VCMT 331-FM:T9415

UGC DOR8244394
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.11 CAD - $23.11 CAD
$23.11 CAD
$23.11 CAD - $23.11 CAD
$23.11 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit 3/8", épaisseur 3/16", rayon de bec 1/64" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux FM, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05 - P30, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)VCMT 331-FM:T9415
Product Name (ISO)VCMT 160404E-FM:T9415
GradeT9415
Chipbreaker (CBMD)FM
Product Number8244394
Product FamilyVMCT
Insert Geometry
Insert DesignVCMT
Insert Shape Code (SC)V - rhombique angle d'ouverture 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Tool Information
Reference Numbers
EDP Number8244394
EAN3603604017572
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download
VCMT 331-FM:T9415 — Line Drawing PDF Download
