LNGF 361220-MM-S02:T9415
LNGF 361220-MM-S02:T9415

LNGF 361220-MM-S02:T9415

UGC DOR8246889
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$80.71 CAD - $80.71 CAD
$80.71 CAD
$80.71 CAD - $80.71 CAD
$80.71 CAD

Vendu en lots de : 5

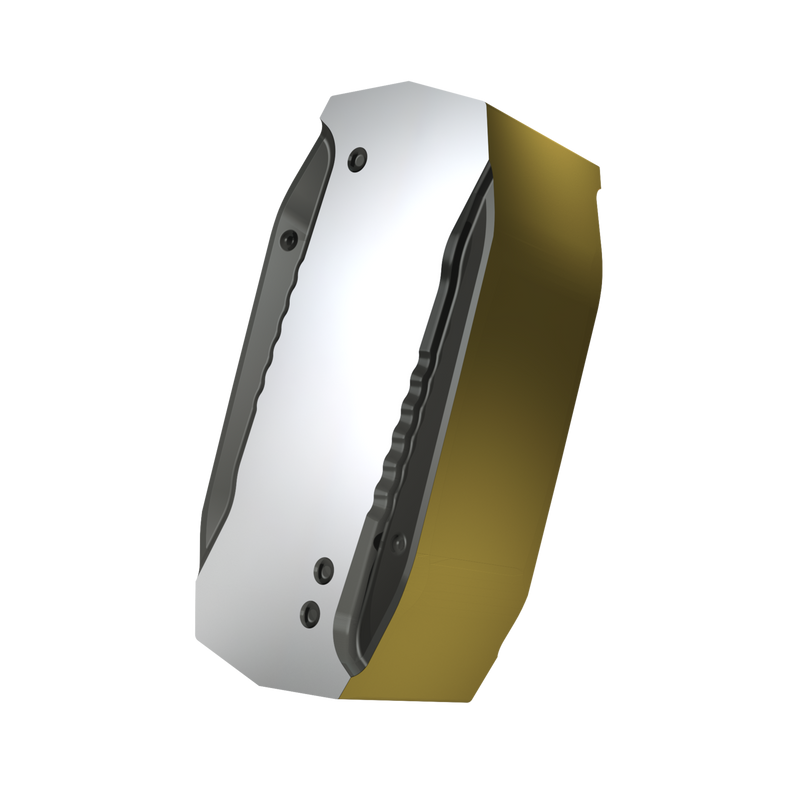

Plaquette négative double face pour écroûtage, rectangulaire, de 36,5 mm de long, 12 mm d'épaisseur pour 2 mm de profondeur de coupe, précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux MM avec préparation d'arête S02, en nuance T9415, un carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNGF 361220-MM-S02:T9415
GradeT9415
Chipbreaker (CBMD)MM
Product Number8246889
Product FamilyGNL 36
Insert Geometry
Insert DesignLNGF 36
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.472"
Insert Thickness — mm (S)12.0 mm
Tool Information
Reference Numbers
EDP Number8246889
EAN3603604020053
File Type Download

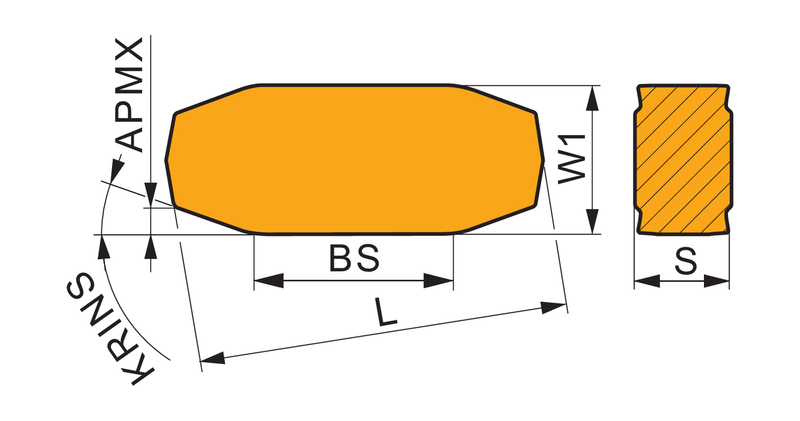

LNGF 361220-MM-S02:T9415 — Line Drawing PDF Download
